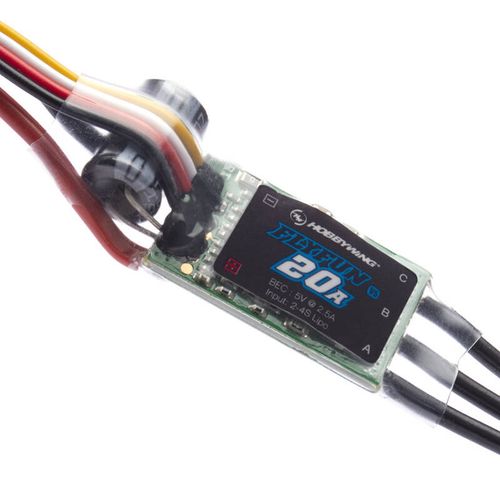

FLYFUN - 20A V5
The FLYFUN - 20A V5 speed controller is a versatile device designed for both aircraft models and helicopters powered by alternating current (AC). Its constant current is 20A, and its maximum peak current reaches 30A, which guarantees reliable in-flight performance. The regulator is compatible with LiXX batteries (2-4 cells) and is equipped with a 5.2V, 2.5A current BEC, which allows stable power supply for on-board electronics. Its compact dimensions (25 mm long, 15 mm wide, 5 mm high) and light weight (13 g) make it ideal for installation in models with limited space. The FLYFUN - 20A V5 supports unidirectional control, has a brake function and is programmable, allowing customization of parameters. The lack of sensor inputs simplifies the design and operation.
| Manufacturer | Hobbywing |
|---|---|
| Model | HW30202308 |
| Application | Aircraft, Helicopters |
| Type | AC |
| Constant current | 20A |
| Max peak current | 30A |
| LiXX cells | 2-4 |
| BEC voltage | 5.2V |
| BEC current | 2.5A |
| Length | 25mm |
| Width | 15 mm |
| Height | 5 mm |
| Weight | 13 g |
| Control | unidirectional |
| Brake | Yes |
| Inputs for sensors | No |
| Programmable | Tak |
