Product description

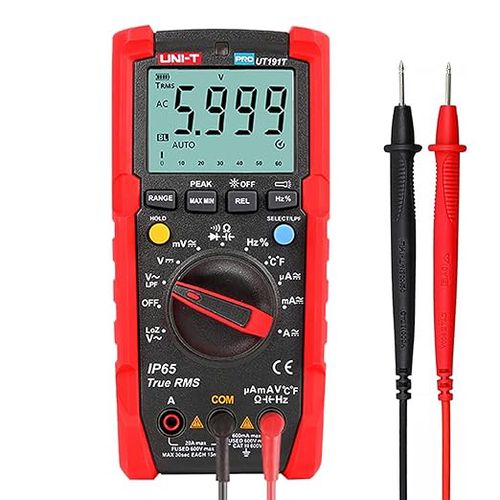

UT191 Series Professional Multimeters
UT191 Series professional multimeters designed for industrial users. This CE/GS/cTUVus certified multimeter series complies with CAT III 600V and is IP65 rated, suitable for use in damp and dusty environments. UT191’s new function memory’ retains the latest mode setting the next time it is turned on, improving efficiency for users. UT191T supports accurate and precise temperature measurement.
Models in UT191 series: UT191E, UT191T
Features of UT191 Series Professional Multimeters
Certificates: CE, UKCA, GS, cTUVus
● Measurement setting saved after power reset
● IP65, 2m drop proof
● True RMS/Peak value measurement
● Auto backlight
● 20A current measurement
● LoZ AC measurement
● Precise temperature measurement with resolution of 0.1℃
Specifications of UT191 Series Professional Multimeters
|
Specifications |
Range |
UT191E |
UT191T |
|
DC voltage (V) |
600V |
±(0.5%＋3) |
±(0.5%＋3) |
|
AC voltage (V) |
600V |
±(0.7%＋3) |
±(0.7%＋3) |
|
LoZ ACV (V) |
600V |
±(2%＋5) |
±(2%＋5) |
|
ACV LPF |
600V |
±(2%＋5) |
±(2%＋5) |
|
DC current (A) |
20A |
±(0.8%+3) |
±(0.8%+3) |
|
AC current (A) |
20A |
±(1%+3) |
±(1%+3) |
|
Resistance (Ω) |
60MΩ |
±(0.8%+2) |
±(0.8%+2) |
|
Capacitance (F) |
60mF |
±(3%+5) |
±(3%+5) |
|
Frequency (Hz) |
10Hz~1MHz |
±(0.1%+4) |
±(0.1%+4) |
|
Duty cycle |
0.1%~99.9% |
±(2%＋5) |
±(2%＋5) |
|
Temperature (℃) |
-40℃~400℃ (0.1°C resolution) |
±(1%+20) |
|
|
Temperature (℉) |
-40℉~752℉ (0.2°F resolution) |
±(1%+40) |
|
|
ACV peak hold |
±(2%+100) |
±(2%+100) |
|
|
Peak current detection |
±(3%+100) |
±(3%+100) |
|
|
Features |
|||
|
Display count |
6000 |
||
|
Sampling rate |
3 times/second |
||
|
Analog bar graph |
31 sections |
||
|
True RMS |
√ |
||
|
AC voltage frequency response |
45Hz~400Hz |
||
|
AC current frequency response |
45Hz~400Hz |
||
|
Diode/Continunity test |
√ |
||
|
Auto/Manual range |
√ |
||
|
Auto power off |
√ |
||
|
Low battery indication |
√ |
||
|
Data hold/MAX/MIN |
√ |
||
|
Function selection (SELECT) |
√ |
||
|
Flashlight/Auto backlight |
√ |
||
|
2m drop test/IP65 |
√ |
||
|
General Characteristics |
|||
|
Power |
9V battery |
||
|
LCD size |
58mm x 42mm |
||
|
Product net weight |
Red and grey |
||
|
Product color |
428g |
||
|
Product size |
180mm x 87mm x 59mm |
||
|
Standard accessories |
Test lead, battery, carrying bag, point contact temperature probe (UT191T) |
||
|
Standard individual packing |
Gift box, English manual |
||
|
Standard quantity per carton |
10pcs |
||
|
Standard carton measurement |
545mm x 315mm x 335mm |
||
|
Standard carton gross weight |
8.8kg |
||
Specifications
Experimental product description generated by artificial intelligence
UNI-T Professional Digital Multimeter: Precision Measurement for Professionals
This UNI-T Professional Digital Multimeter is a versatile and reliable tool designed for accurate measurements in various applications. It's an essential instrument for electricians, technicians, engineers, and anyone requiring precise readings in electrical and electronic work.
Key Features and Specifications
- Measurement Types: DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Frequency
- Voltage Range (DC/AC): 600V
- Current Range (DC/AC): 20A
- Resistance Range: 60MΩ
- Capacitance Range: 60mF
- Frequency Range: 1MHz
Applications
This high-precision multimeter is suitable for a wide range of applications, including:
- Electrical troubleshooting and repair
- Electronic circuit testing and analysis
- Automotive diagnostics
- Industrial maintenance
- Educational and laboratory use
Why Choose This UNI-T Multimeter?
The UNI-T brand is synonymous with quality and reliability. This digital multimeter offers:
- High Accuracy: Ensures precise and dependable readings.
- Wide Measurement Range: Covers a broad spectrum of electrical parameters.
- Durable Construction: Built to withstand the rigors of professional use.
- Ease of Use: Simple and intuitive operation for efficient workflow.
- Cost-Effective Solution: Provides professional-grade performance at a competitive price.
This UNI-T digital multimeter, also known as a DMM, electrical tester, or voltage meter, is an indispensable tool for professionals and hobbyists alike. Its comprehensive features and robust design make it a valuable asset for any workshop or laboratory.
| Parameter | Value |
|---|---|
| Voltage (DC/AC) | 600V |
| Current (DC/AC) | 20A |
| Resistance | 60MΩ |
| Capacitance | 60mF |
| Frequency | 1MHz |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
