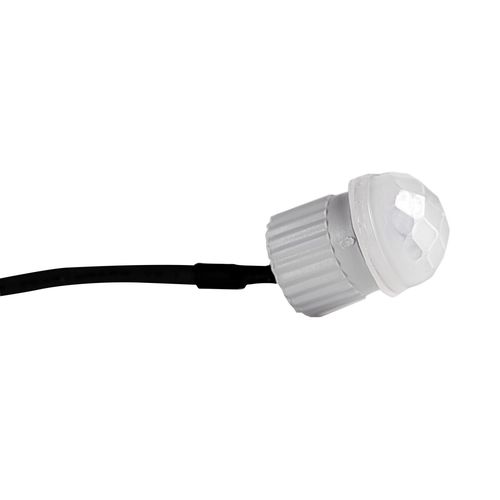

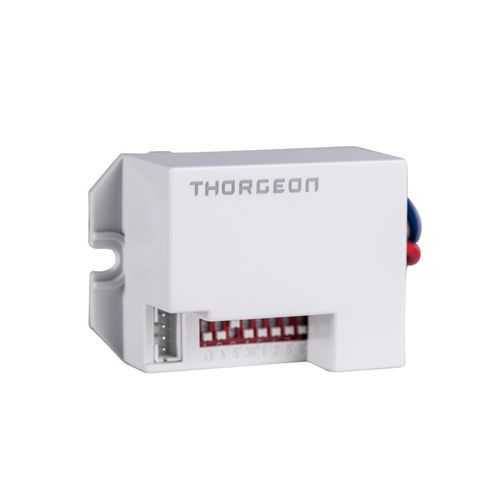

PIR motion detector with external sensor, 230Vac, 800W, 6m, IP65
Product Code: THORGEON-02025
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Products purchased together
Product description
Technical data
| Model | Motion detector |
| Sensor type | Passive infrared |
| Scan angle | 360 ° |
| Max. transmission range frontally | 6 m |
| Response value luminosity adjustable | Yes 10 - 2000 lx |
| Nominal voltage | 220 - 240 V AC; 50 - 60 Hz |
| Max. switching power | 800 W |
| Max. switching power LED | 800 W |
| Optimum mounting height | 1.8 - 4 m |
| Diameter detection range sideways | 6 m |
| Min. switch-on time | 5 s |
| Max. duty cycle | 8 min |
| With remote control | No |
| Response value sensitivity adjustable | Yes |
| Mounting method | Recessed |
| Suitable for ceiling mounting | Yes |
| Suitable for wall mounting | Yes |
| Usage | Indoor and outdoor use |
| Colour | White |
| RAL-number (similar) | 9010 |
| Degree of protection (IP) | IP65 |
| Temperature | -20 - +40 °C |
| Dimensions | 55.4mm x 36.8mm x 25.5mm |
Useful information
Specifications
SKU
411931
Weight
0.066 kg.
Barcodes
4751029899620
Warranty period (months)
24
Brand
Product code
THORGEON-02025
