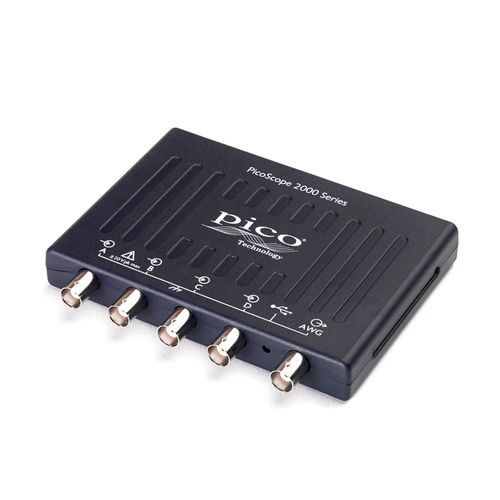

PicoScope 2405A 4 channel 25MHz
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
USB oscilloscopes & mixed signal oscilloscopes
- 2 channel, 4 channel and MSO models
- 6 instruments in one
- Ultra-compact design
- Up to 100 MHz bandwidth
- Up to 128 MS buffer memory
- Decode over 38 serial protocols as standard
- USB connected and powered
- Windows, Linux and Mac software
Your complete test & measurement laboratory
You can use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and protocol decoder out of the box. Mixed signal models also add a 16 channel logic analyzer. A complete electronics lab in one compact, low-cost, USB-powered unit.
The PicoScope 2000A models deliver unbeatable value for money and are ideal for education, hobby and field service use. In the lab the low cost allows one scope per person rather than having to share.
The PicoScope 2000B models have the added benefits of deep memory (up to 128 MS), higher bandwidth (up to 100 MHz) and faster waveform update rates. PicoScope 2000B models give you the performance to carry out advanced analysis of your waveforms. They are ideal for design, debug and serial decoding.
The Configure Your Scope panel on the left gives a quick guide to the models, specifications.
High-end oscilloscope
At the heart of every PicoScope 2000 is an advanced oscilloscope which offers everything you would expect and much more besides:
- 10,000 waveform circular buffer
- Up to 80,000 waveforms per second update rate
- Mask limit testing
- Advanced math & filtering
- Measurements with statistics
- Advanced digital triggering
- Resolution enhancement to 12 bits
|
Model |
PicoScope |
||||||
|
Bandwidth |
10 MHz |
25 MHz |
50 MHz |
70 MHz |
100 MHz |
||
|
2 channel |
2204A |
2205A |
|
2206B |
|
2207B |
2208B |
|
4 channel |
|
|
2405A |
|
2406B |
2407B |
2408B |
|
2 channel MSO |
|
|
2205A MSO |
|
2206B MSO |
2207B MSO |
2208B MSO |
Specifications
Experimental product description generated by artificial intelligence
PicoScope 2405A 4 channel 25MHz PC Oscilloscope
The PicoScope 2405A is a 4-channel, 25MHz oscilloscope from Pico Technology. It's part of the PicoScope 2000 Series, known for its ultra-compact design and powerful features.
Key Features and Specifications
- 4 Analog Channels: Simultaneously capture and analyze four analog signals.
- 25MHz Bandwidth: Provides high-fidelity signal acquisition for a wide range of applications.
- PC-Connected: Leverages the processing power of your computer for advanced analysis and display capabilities.
- Deep Memory: Captures long-duration waveforms for detailed analysis of infrequent events.
- Advanced Triggering: Offers a wide array of triggering options for precise signal capture.
- Built-in AWG: Includes a built-in arbitrary waveform generator for signal generation and testing.
- User-Friendly Software: PicoScope software provides intuitive controls and advanced analysis tools.
Applications
The PicoScope 2405A is suitable for a variety of applications, including:
- Education
- Design and Test
- Field Service
- Research and Development
- Hobbyist Use
Why Choose PicoScope 2405A?
The PicoScope 2405A offers a compelling combination of performance, portability, and affordability. Its compact size makes it ideal for use in various environments, while its advanced features provide the tools needed for comprehensive signal analysis. The included software provides a user-friendly interface and a wide range of analysis tools.
| Feature | Specification |
|---|---|
| Channels | 4 Analog |
| Bandwidth | 25 MHz |
| Sampling Rate | 500 MS/s |
| Memory | 48 kS |
For detailed specifications, please refer to the product manual.
