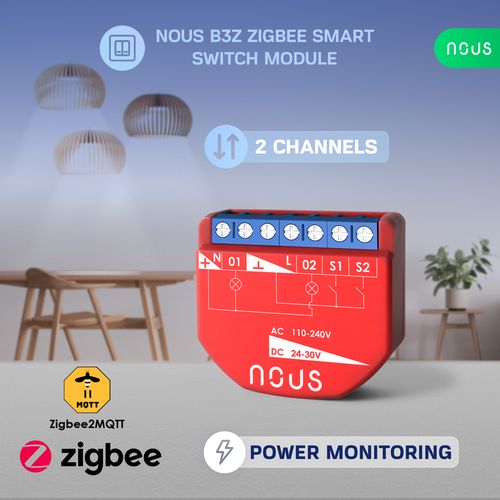

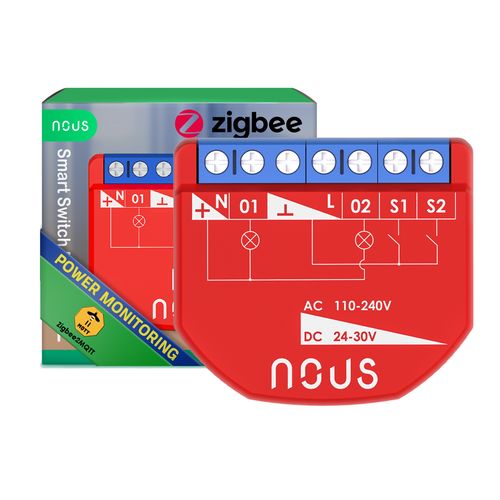

Nous B3Z ZigBee Smart Switch Module 2 channels, with Power Meter
Product Code: NOUS-B3Z
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Products purchased together
Product description
MAIN SETTINGS
Brand Nous
Special features Works with app or locally in Home Assistant with zigbee2mqtt or zha, 2 channels, power meter
Compatibility Requires zigbee 3.0 hub/gateway
Certificate CE
Material PC V0 fire retardant plastic
SPECIFICATIONS

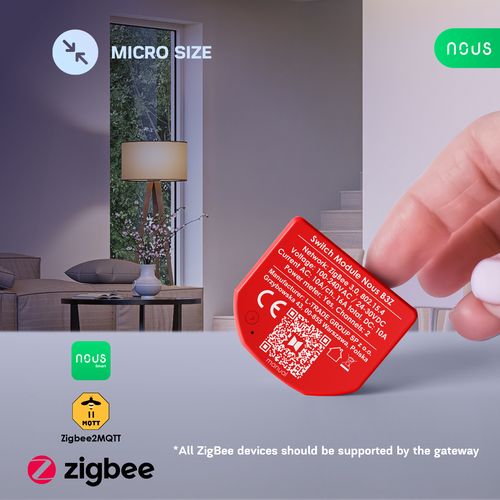

Device dimensions 42*37*16mm
Maximum load 10A/ch.,16A total, DC: 10A
Operating voltage range 100-240VAC / 24-30VDC
Operating temperature 0ºC ~ 40 ºC
Level of moisture protection IP20
Device weight 30gr
NETWORK
Communication standard IEEE 802.15.4
Protocol Zigbee 3.0
Control from a smartphone Nous smart, Tuya smart life app, Home Assistant, etc
Compatibility with voice assistants Alexa, Google Assistant
Frequency range: 2400 - 2483 MHz
Max.Transmit Power 10 dBm
Useful information
Specifications
SKU
417011
Weight
0.033 kg.
Warranty period (months)
24
Brand
Product code
NOUS-B3Z
Communication protocol
ZigBee
Power supply voltage, V
230
SMART HOME DIY
Yes
