Hybrid IoT Controller powered by Niagara Framework
Just one powerful controller with 36 I/O onboard for monitoring and control, trends, alarms, HTML5 visualization, and the ability to integrate all the protocols that exist in the commercial buildings.

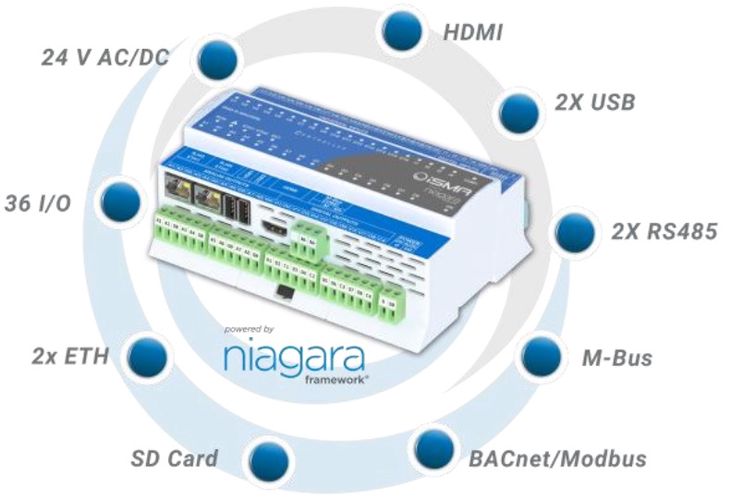

All-in-one-integration
Achieve maximum efficiency and comfort of the building while reducing the energy cost to a minimum thanks to connecting HVAC, metering, lighting, comfort and energy management into one common platform.
Visualization Efficiency
Access and control HTML5 visualization locally, with onboard HDMI output and 2 USB ports with touch and mouse support, or globally thanks to IP connectivity.
Expandable
36 onboard inputs and outputs can be easily expanded by series of I/O Modules by IP or RS485 interface, enabling expanding the controller capabilities at the same time of installation or in the future.

DDC Control
Take advantage of the onboard 36 I/O managable within Niagara Framework.

16 Universal Inputs
Support for over 20 types of temperature sensors and voltage, resistance, current, and dry contact measurements on each universal input.

4 Digital Inputs
Dry contact inputs - made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to the SD card.

8 Digital Outputs
Digital outputs equipped with normally open 3 A relays allow for direct control without additional relays.

8 Analog Outputs
0-10 V DC control with 10 mA accuracy, PWM modes and a maximum load of up to 20 mA to power external relays makes the output suitable for a variety of scenarios.

Scalable
It is all about the scale! Implement BMS into the small and medium-sized buildings that thought they can’t afford the BMS.

Complex solution...
Provide control, data logging, alarming, scheduling, integration, and visualization. Choose whether you control your building remotely through the browser using a secured connection or locally with a screen connected directly to the controller through the HDMI port.

..to make your building smart!
Bring your building or a group of buildings to the cloud by one of the chosen protocols like MQTT to maximize the efficiency of the buildings, monitor and optimize the operation of the building to minimize the maintenance cost.

Niagara Framework
Versions 4.4 and up

Licensing
Base license: 100 points to 1250 points
Update packages: 50 points to 1250 points

Technical Specification
Hardware Specification
1 GHz dual core CPU
1 GB DDR3 RAM
Opto-isolated RS485 interface
2x independent Ethernet interfaces
2x USB 2.0 interfaces
HDMI 1.4 interface
FRAM Memory for Data Recovery Service
iSMA OS Linux Distribution
Industrial Grade 4 GB microSD card
Status LED indicators
DIN rail mounted

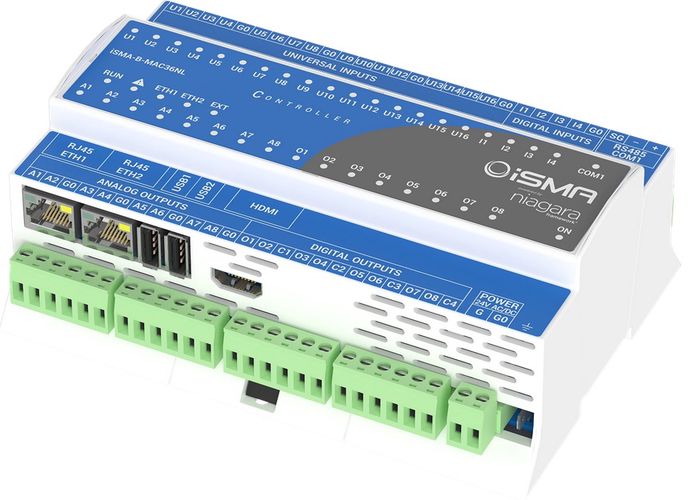

36 I/O onboard
Two programmable DIP switches
Two programmable rotary switches

Inputs
16x Universal Inputs (UI)
Temperature input 10K3A1, 10K4A1, Carel 10K, 20K6A1, 2.2K3A1, 3K3A1, 30K6A1, SIE1, TAC1, SAT1, Pt1000, Ni1000 0C, Ni 1000 20C, Ni1000 LG 2
Resistive input 0-1000 kΩ
Voltage input 0-10 V DC
Current input 0-20 mA
Dry contact input
+W9

4x Digital Inputs (DI)
Dry contact inputs
Fast pulse counter up to 100 Hz save in EEPROM memory

Outputs
8x Digital Outputs (DO)
NO relay output
Resistive load max. 3 A @ 230 V AC / 30 V DC
Inductive load max. 75 VA @ 230 V AC / 30 W @ 30 V DC

8x Analog Outputs (AO)
Output 0-10 V DC maximum load up to 20 mA
PWM: 0,01 Hz, 0,1 Hz, 1 Hz, 10 Hz, 100 Hz

Communication
Modbus RTU/ASCII
Modbus TCP/IP
BACnet MS/TP
BACnet IP
oBiX
SNMP
KNX IP
M-Bus IP
LON IP
TLS/SSL encryption
Built-in HTTP web server
MQTT
Over 200 available drivers for proprietary protocols

Power supply
24 V DC
24 V AC
