Product description
Introduction
The first multifunction tester in pocket size. It allows the test of an electrical system according to the IEC standard as the common installation tester does. In addition, the TRMS Voltage measurement and the Socket Tester features allow Installation tests to be performed from anyone (RCD, LOOP L-PE ) in according to IEC61557-3 and IEC61557-6. The instrument allows you to memorize the results and create reports through an application for mobile devices.
Main Features
- Socket Test (Correct wiring)
- Voltage measurement L-N , TRMS

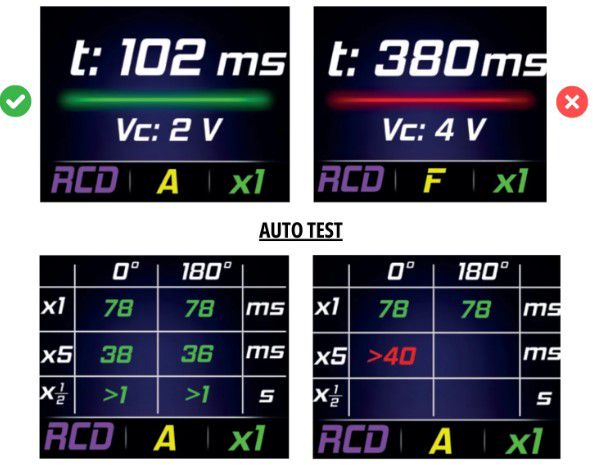

- RCD test (type A, AC and F; 30mA) also in AUTO mode with contact voltage measurement

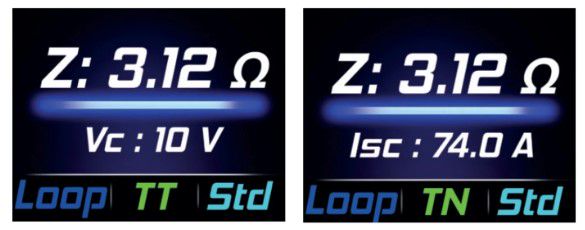

- Loop impedance (earth resistance) and contact voltage measurements in TT system.
- Loop impedance (earth resistance) and short circuit current measurements in TN system.

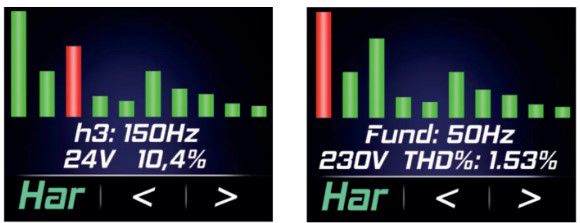

- Voltage harmonics up to 49 th
- THD% (Total harmonics Distortion) measurement.
- CAT. III 300V
- Report generation and calibration certificate download using KPS FASTCHECK APP
| Function | Range | Resolution | Accuracy |
| AC Voltage | 190 ÷ 265 V | 1 V | ± (1,0% + 3dgt) |
| Frequency | 42 ÷ 69 Hz | 0.1 Hz | ± (2,0% + 1dgt) |
| RCD test | Current | <0.1 I∆n | ± (0.0% +5%I∆n) |
| Time | 0.1 ms | ± (2ms + 2dgt) | |
| Loop Impedance | 9.99 Ω | 0.01 Ω | ± (5,0% + 8dgt) |
| 99.9 Ω | 0.1 Ω | ± (5,0% + 8dgt) | |
| 999 Ω | 1 Ω | ± (5,0% + 8dgt) | |
| Harmonics | 0.8 ÷ 256 V | 0.1 V | ± (3,0% + 5dgt) |
Warranty 36 months
Useful information
Specifications
Experimental product description generated by artificial intelligence
The KPS FASTCHECK3010 is a multifunction tester in pocket size. It allows the test of electrical systems according the IEC standard as the common installation tester do. In addition to the TRMS Voltage measurement and the Socket Tester features allow Installation test to be performed from anyone ( RCD, LOOP L-PE ) in according to IEC61557-3 and IEC61557-6. The instrument allows you to memorize the results and create reports through an application for smartphones.
The KPS FASTCHECK3010 executes the following test and functions:
- Socket Test (Correct wiring)
- Voltage measurement L-N, TRMS
- RCD test (type A, AC and F; 30mA) also in AUTO mode with contact voltage measurement
- Loop impedance (earth resistance) and contact voltage measurements in TT system. Possibility of low current avoiding the RCD trip.
- Loop impedance (earth resistance) and short circuit current measurements in TN system. Possibility of low current avoiding the RCD trip.
- Voltage harmonics up to 49 th
- THD% (Total harmonics Distortion) measurement
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
