Product description

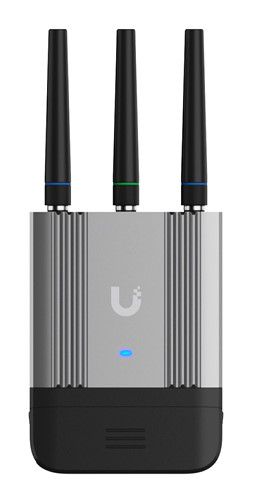

Modem Ubiquiti UniFi UMR industrial-EU (LTE(4G)/UMTS/GSM/GPRS LTE Cat4)
Specifications
Supplier product description
- Type: Industrial Modem
- Model: UMR-Industrial-EU
- Mobile technology: LTE (4G), UMTS, GSM, GPRS
- LTE category: Cat4
- WAN port: 1
- LAN speed: 1000 Mbps
- VPN support: Yes
- Power: 22 dBm
- WiFi standard: 802.11b/g/n (WiFi 4)
- SIM support: Yes
- GPS support: Yes
- PoE: IN/OUT
- Operating temperature: -40°C to 70°C
- Protection class: IP66
- USB connection: Type-C (5V DC)
- General
- DimensionsWithout antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3"), With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3"), With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")
- WeightDevice: 360 g (12.7 oz), Device with outdoor cover: 395 g (13.9 oz), DIN rail/wall mounts: 25 g (0.9 oz)
- Enclosure materialPolycarbonate, aluminum
- Mount materialWall/pole mount: polycarbonate, DIN rail mount: polycarbonate
- Pole mount diameter1–2" on pipe outer diameter
- Wind loading38.8 N at 200 km/h (8.7 lbf at 125 mph)
- WeatherproofingDevice with outdoor cover: IP66
- Management interfaceEthernet, WiFi
- Networking interface(2) GbE RJ45 ports, LTE Category 4 radio, WiFi 4
- PoE interface(1) PoE input, (1) PoE output* (Max. 10W) *Requires a PoE+ switch.
- Power supplyUniFi PoE switch (48—54V DC), USB Type-C (5V DC), 4-pin* ATX DC power socket (9—30V DC) *Pin 1 for Power + and Pin 2 for Ground –. Please refer to the Installation Guide for detailed power socket pinout.
- Max. power consumption12.5W
- SIMnano-SIM (4FF)
- LTE bandsB1, B3, B7, B8, B20, B28
- 3G bandsB1, B8
- LTE throughput speed*Download 150 Mbps / Upload 50 Mbps *Speed depends on network coverage and performance at the device location.
- WiFi standards802.11 b/g/n, WiFi 2.4G, 20/40 MHz
- Max. WiFi TX power22 dBm
- WiFi MIMO2 x 2
- GPSYes
- Antenna SMA ports(1) Mobile 1: SMA female connector, supports 1Tx and 1Rx, (1) Mobile 2: SMA female connector, supports 1Rx only, (1) GPS: SMA female connector, (2) WiFi: RP-SMA female connectors
- External antennas(2) Mobile/LTE antennas with SMA male connectors, (1) GPS antenna with SMA male connector, (2) WiFi antennas with RP-SMA male connectors
- LEDStatus: blue/white
- ButtonFactory reset
- MountingDIN rail/wall/pole mount (Included)
- Ambient operating temperature-40 to 70° C (-40 to 158° F)
- Ambient operating humidity5 to 95% noncondensing
Supplier parameters
Product code
LTEUBIQUITIUMRINDUST
Category
Rout
Supplier's product code
LTEUBIQUITIUMRINDUST
Product ID
U-4158586
Brand
Ubiquiti
