Product description

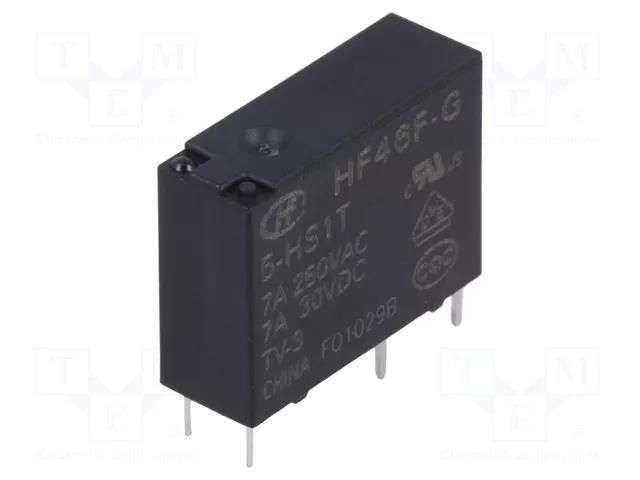

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 10A; 7A/250VAC; PCB
Useful information
Specifications
SKU
U-204232
Product code
HF46F-G/005-HS1T
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 10A; 7A/250VAC; PCB
Useful information
Supplier parameters
Product code
HF46F-G/005-HS1T
AC contacts rating @R
7A / 250V AC
Body dimensions
20.5x7.2x15.3mm
Coil power consumption
200mW
Coil resistance
125Ω
Coil voltage max.
6.5V DC
Coil voltage min.
3.75V DC
Contact current max.
10A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
7A / 30V DC
Manufacturer
HONGFA RELAY
Mounting
PCB
Operate time
10ms
Operating temperature
-40...85°C
Rated coil voltage
5V DC
Relay variant
subminiature
Release time
10ms
Switched voltage
max. 30V DC
Type of relay
electromagnetic
Supplier's product code
HF46F-G/005-HS1T
Product ID
U-204232
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
