MikroTik mANT30 PA | Directional antenna | MTAD-5G-30D3-PA, 5GHz, 30dBi, MIKROTIK
Specifications
Supplier product description

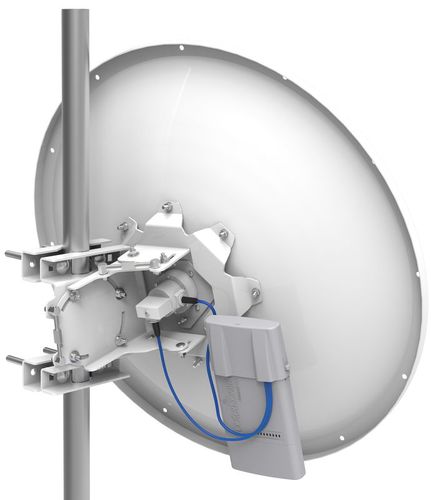

MicroTik mANT30 PA
Mikrotik MTAD-5G-30D3-PA is a professional dual antenna with a frequency 5 GHz and gain 30dBi, built to the highest industrial standards. It is designed to create radio bridges, point-to-point connections. Built to accommodate Basebox products without any problems, but thanks to the appropriate length of the included FlexGuide cable, it can be used for any wireless pole-mounted device.
The antenna is available with a standard mount for easy installation and setting.
The most important features:
The most important features:
- Dual polarity (2x2 MIMO): horizontal and vertical
- Wide frequency range
- RP-SMA connectors (with plug, outside thread)
- Dish with a diameter of 70 cm
- Operation in the 5 GHz band
- Gain 30 dBi
| Antenna frequency | 5 GHz |
| Antenna type | Directional |
| Energy gain | 21dBi - 30dBi |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 30 |
| Application | Outdoor |
| Connector type | 2x RP-SMA |
| Cross polarization isolation | >40 dB |
| Depth | 450 |
| Frequency band | 4.7 - 5.9 |
| Front-to-back ratio | 30 dB |
| Harmonized System (HS) code | 85177100 |
| Horizontal beamwidth | 2.5° |
| Impedance | 50 |
| Numbers of pieces in the package | 1-pack |
| Polarization | Vertical |
| Polarization | Horizontal |
| Polarization | Dual polarization |
| Port-to-Port isolation | >40 dB |
| Power handling | 100 |
| Product colour | White |
| Purpose | Outdoor |
| Quantity per pack | 1 |
| Vertical beam width | 2.5 |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Weight | 5.7 |
| Width | 700 |
Supplier parameters
Product code
MTAD-5G-30D3-PA
Brand
MIKROTIK
Supplier's product code
MTAD-5G-30D3-PA
Product ID
U-3955484
