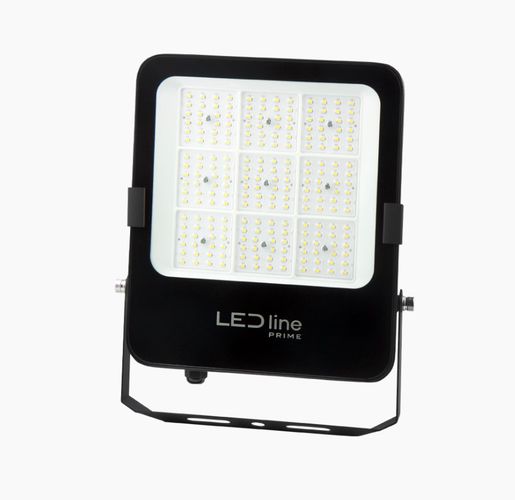

FLUX floodlights are a series of lighting devices with increased resistance to weather conditions. FLUX industrial floodlights are applied in places where intense and effective lighting is required. They are designed specifically for use in the industry and other demanding environments. Light color temperature selectable with internal switch: 3000K, 4000K or 5000K.

Application:

Production halls and warehouses
Squares and car parks
Sports facilities – stadiums, Orlik sports fields, sports fields, sports halls
Transport infrastructure – airports, railway stations, ports.

Technical data

Wattage	100 W
Correlated colour temperature	3000 K; 4000K; 5000 K selectable
Luminous flux	14000 lm
Luminous efficacy	140 lm/W
Beam angle	120°
Colour rendering index Ra	70
Colour consistency in McAdam ellipses	≤6
Energy efficiency class 2019/2015	D
Supply voltage range and voltage type	100-227V AC 50/60Hz
Current	0,483 A
Power Factor	0,9
Sensor availability	No
Dimmable function	No
Lamp's warm-up time to 60%	1
LED type	SMD2835
LED quantity	-
Lifetime L70B50	50000
Number of on/off cycles	50000
Wire length	920mm
Mounting type	surface
Material (cover)	tempered glass
Material (housing)	DIE-CAST alu
Colour	Black
IEC protection class	I
IP protection rating	IP66
IK protection rating	IK08
Ambient temperature suitable for operation	-40 ÷ 45 °C

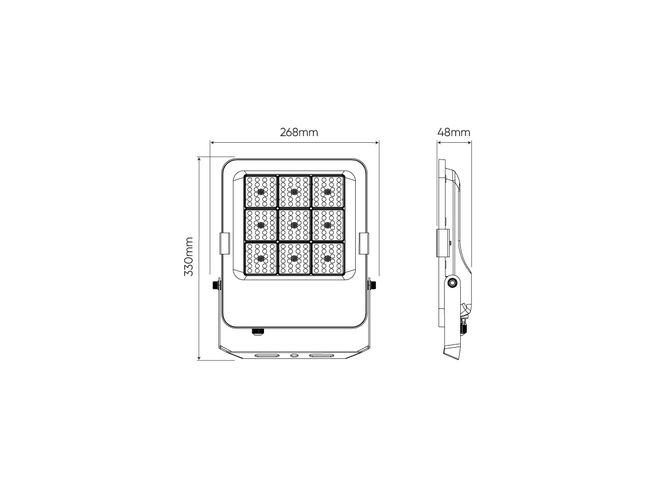

Dimensions	330mm x 268mm x 43,5mm
Weight	1800 g

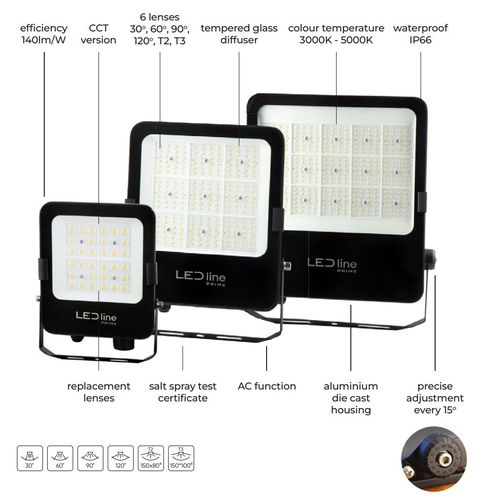

These floodlights are characterised by high luminous efficacy at the level of 140 lm/W. This means that they provide a large amount of light, with the relatively low consumption of electricity. This lowers operating costs and reduces the negative environmental impact. High power and brightness of floodlights allows for even lighting of large areas with intense light. IP66 protection class and high resistance to difficult external conditions enable their operation both inside and outside premises, without requiring additional servicing or maintenance. floodlights are available in several power options: 30 W 50 W 100 W 150W 200 W 400 W 600 W The size of the floodlight housing varies depending on the selected power option. Several options of light beam angles are also available: 120 degrees – standard beam angle 90 degrees – less diffused light than in case of the standard beam angle, but still quite broad 60 degrees – narrow beam angle 30 degrees – spot lighting T2 and T3 – asymmetric lenses. The application of appropriate lenses depending on the desired final effect allows to adjust the direction and distribution of light, which entails many benefits, such as: precise light control; optimised use of light; flexibility and versatility of use; reduction of reflections and shadows; increased efficiency of lighting. Main features of floodlights: High energy efficiency - they are characterised by high energy efficiency, consume much less energy than traditional light sources. Longer lifespan - they are equipped with durable components such as LEDs that have a very long service life High quality lighting - quality of lighting characterised by even light diffusion and low levels of reflections. Possibility to adjust light beam angles - thanks to this, it is possible to adjust lighting to specific needs, ensuring optimal conditions in various situations Environmental protection - thanks to the lower consumption of energy and a longer service life, floodlights contribute to reducing CO2 emissions and relieving the burden on the environment. They are more ecological than traditional light sources, thus supporting sustainability and ecological responsibility. The 5-year guarantee for the floodlight series simply proves that these products are designed to work in adverse weather conditions. They guarantee high quality and durability while reducing operating costs. The fixtures are equipped with a 93 cm long rubber cable H05RN-F 3x1mm2.
