LED driver 220-240Vac - 24Vdc, 100W, TRIAC + DALI + Push-DIM + 1-10V, Sunricher
Product Code: SRPC-TRIAC-24-100CV
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Products purchased together
Product description
- Dimmable LED driver with rectangle metal case

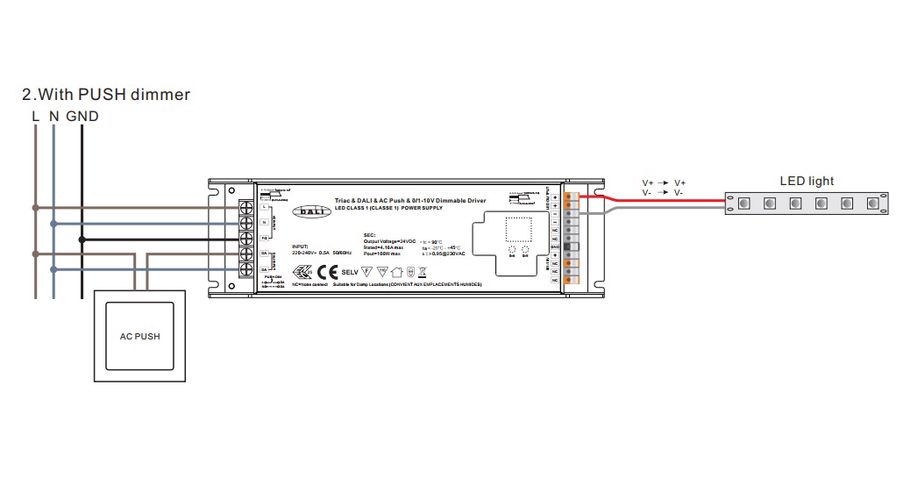

- With DALI/Push+Triac+0/1-10V dimming interfaces
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
- Built-in DALI-2 interface, DALI DT6 device
- 1 channel 24VDC constant voltage output
- Class 1 power supply, full isolated metal case
- Built-in two-stage active PFC function
- PF > 0.95, Efficiency > 91%
- Compatible with universal Triac dimmers

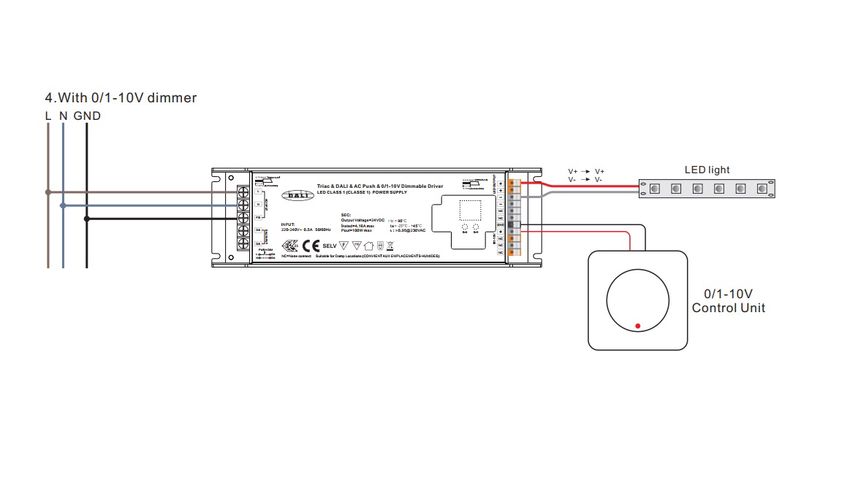

- Compatible with universal 0/1-10V dimmers
- PWM digital dimming output
- Compliant with Safety Extra Low Voltage standard
- Over load, over temperature protection
- IP20 rating, suitable for indoor LED lighting applications
TECHNICAL SPECIFICATIONS
| Output | LED channel | 1(with 2 groups of terminal connected in parallel) |
| DC voltage | 24V | |
| Max. current | 4.16A/group of terminal, group 1+group2=4.16A | |
| Voltage tolerance | ±1% | |
| Rated Power | 100W | |
| Input | Voltage Range | 200-240V AC |
| Frequency | 50/60Hz | |
| Power Factor (Typ.) | >0.95 | |
| Total harmonic distortion | THD ≤ 15% (@ full load / 230VAC) | |
| Efficiency (Typ.) | > 91% @ 230VAC | |
| Input Current | 0.5A @ 230VAC | |
| Inrush Current (Typ.) | COLD START Max. 50A @ 230VAC | |
| Leakage Current | < 0.5mA /230VAC | |
| Control | Dimming Interface | Triac+DALI (DALI consumption < 2mA)/Push+0/1-10V |
| Dimming Range | 1%-100% | |
| Dimming Method | Pulse Width Modulation | |
| Protection | Over Current | Yes, auto recovery after fault removed |
| Over Temperature | Yes, auto recovery after fault removed | |
| Environment | Working Temp. | -25°C ~ +45°C |
| Max. Case Temp. | 90°C (Ta="45°C") | |
| Working Humidity | 10% ~ 95% RH non-condensing | |
| Storage Temp. &Humidity | -40°C ~ +80°C, 10% ~ 95% RH | |
| Safety&EMC | Safety Standards | EN61347-1, EN61347-2-13 |
| Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Isolation resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |
| EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 184200H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
Useful information
Specifications
SKU
333800
Weight
0.95 kg.
Input voltage DC from, V
24
Brand
Connection type
Sunricher wired
Current, A
4
Type
Power supply
Control current, mA
Sunricher wired
Product code
SRPC-TRIAC-24-100CV
Input voltage DC to, V
24
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence
Experimental product description generated by artificial intelligence
Sunricher LED Driver 220-240Vac - 24Vdc, 100W
This 100W LED driver from Sunricher is a versatile and reliable solution for controlling single-color LED lighting. It's designed for professional use and offers multiple dimming options for precise light management.
Key Features and Benefits
- Multiple Dimming Protocols: Supports TRIAC, DALI, Push-DIM, and 1-10V dimming methods, providing flexibility for integration with various control systems.
- High Power Output: Delivers 100W of power to your LED lights, suitable for a wide range of applications.
- Reliable Performance: Built with high-quality components and features over-current and over-temperature protection for enhanced safety and longevity.
- Easy Installation: Designed for straightforward installation and integration into your lighting system.
- Versatile Applications: Ideal for various indoor LED lighting applications where precise and flexible control is required.
Why Choose This LED Driver?
This Sunricher LED driver stands out due to its comprehensive dimming capabilities, high power output, and robust protection features. Its compatibility with multiple dimming protocols makes it a highly adaptable solution for diverse lighting projects. Choose this driver for reliable performance and seamless integration into your lighting setup.
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 220-240Vac |
| Output Voltage | 24Vdc |
| Power | 100W |
Note: For detailed specifications, please refer to the product datasheet.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
