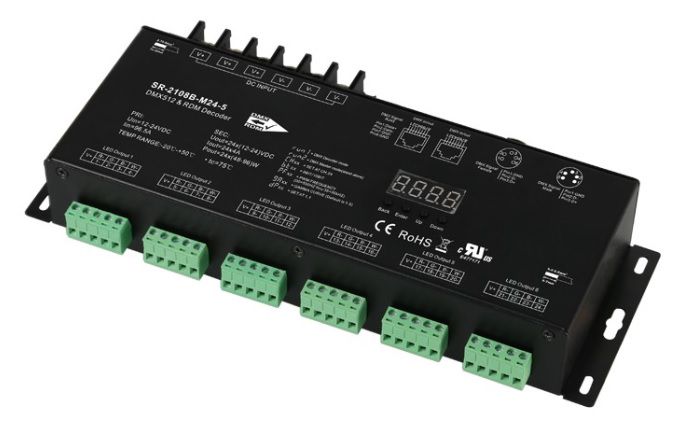

LED controller DMX512, RDM, XLR 5pin, RJ45, 24x4A, Sunricher
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Features
- Unique Master mode and Slave mode option function
- Hihg temeprature resistance numeric digital display, user friendly interface
- Metal case
- 4A 24 channels constant voltage output
- Abundant DMX signal input and output port design: XLR 5pin, RJ45, screw DMX
- DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006ESTA standard)
- RDM bi-directional communication function
Master mode features
- Control each output channel brightness from 0% to 100%
- Run 4 different chasing effects
- Chasing speed is adjustable with 9 levels
Slave mode features
- Total 24 PWM output channels, common anode
- DMX channel quantity 1Ch or 24CH settable
- Enable DMX512 master console to detect decoder, display decoder information and set DMX address
- PWM output high frequency 16bit and low frequency 8bit switchable, default setting is 16bit
- 10 levels of PWM output frequency optional from 500Hz - 35KHz, default is 1KHz
- Decoding modes optional, enable to adjust brightness of each channel, master brightness of all channels and strobe effects, default mode is dp1.1
- Gamma ray curves value adjustable from 0.1 - 9.9, logarithmic dimming and linear dimming optional
Technical data
| Input Voltage | 12-24VDC |
| Output current | 24x4A |
| Output power | 24x(48-96)W |
| Output type | Constant voltage |
| Protection | Short circuit |
| Measurements | 264.5 x 83 x 42mm |
Useful information
Specifications
Experimental product description generated by artificial intelligence
Sunricher LED Controller DMX512, RDM, XLR 5pin, RJ45, 24x4A
This Sunricher LED controller is a versatile and powerful solution for controlling multi-color LED lighting. It's ideal for professional lighting applications where precise control and reliability are essential.
Key Features and Benefits
- DMX512 and RDM Support: Offers both DMX512 and RDM (Remote Device Management) protocols for advanced control and monitoring.
- Multiple Input/Output Options: Features XLR 5-pin and RJ45 connectors for flexible connectivity with various lighting systems.
- High Current Capacity: Provides 24 channels, each capable of delivering 4A of current, suitable for powering a wide range of LED fixtures.
- Versatile Control Modes: Operates in both DMX decoder and standalone master modes, offering diverse control options.
- Robust Construction: Features a durable metal housing for protection and longevity.
- User-Friendly Interface: Includes a digital display for easy setup and monitoring of DMX address, channel quantity, and other settings.
- Advanced Settings: Allows customization of PWM resolution (8-bit or 16-bit), PWM frequency, and dimming curve for fine-tuned control.
Applications
This DMX512 LED controller is perfect for a variety of applications, including:
- Stage lighting
- Architectural lighting
- Studio lighting
- Event lighting
Why Choose This Product?
The Sunricher LED controller offers a combination of features and performance that make it a superior choice for professional lighting control. Its robust design, advanced features, and multiple connectivity options ensure reliable and precise control of your LED lighting system.
| Parameter | Value |
|---|---|
| Brand | Sunricher |
| Channels | 24 |
| Current per Channel | 4A |
| DMX Protocol | DMX512, RDM |
| Connectors | XLR 5pin, RJ45 |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
