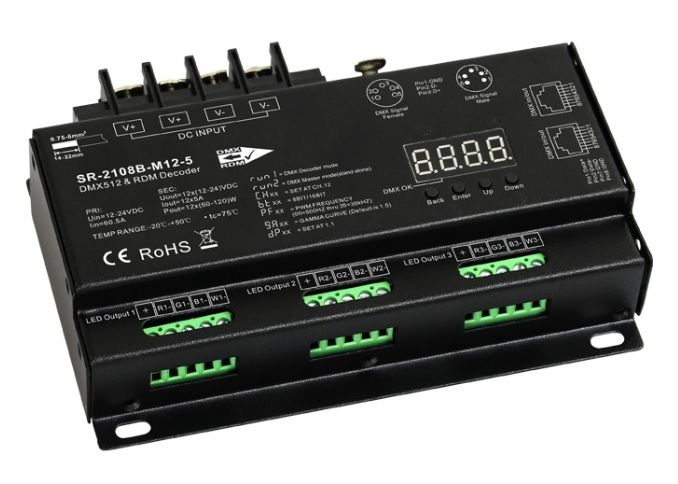

LED controller DMX512, RDM, XLR 5pin, RJ45, 12x5A, Sunricher
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Features
- Unique Master mode and Slave mode option function
- Hihg temeprature resistance numeric digital display, user friendly interface
- Metal case
- 5A 12 channels constant voltage output
- Abundant DMX signal input and output port design: XLR 5pin, RJ45, screw DMX
- DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006ESTA standard)
- RDM bi-directional communication function
Master mode features
- Control each output channel brightness from 0% to 100%
- Run 4 different chasing effects
- Chasing speed is adjustable with 9 levels
Slave mode features
- Total 12 PWM output channels, common anode
- DMX channel quantity 1Ch, 4Ch, 6Ch or 12CH settable
- Enable DMX512 master console to detect decoder, display decoder information and set DMX address
- PWM output high frequency 16bit and low frequency 8bit switchable, default setting is 16bit
- 10 levels of PWM output frequency optional from 500Hz - 35KHz, default is 1KHz
- Decoding modes optional, enable to adjust brightness of each channel, master brightness of all channels and strobe effects, default mode is dp1.1
- Gamma ray curves value adjustable from 0.1 - 9.9, logarithmic dimming and linear dimming optional
Technical data
| Input Voltage | 12-24VDC |
| Output current | 12x5A |
| Output power | 12x(60-120)W |
| Output type | Constant voltage |
| Protection | Short circuit |
| Measurements | 165.5 x 99.7 x 38mm |
Useful information
Specifications
Experimental product description generated by artificial intelligence
Sunricher LED Controller DMX512, RDM, XLR 5pin, RJ45, 12x5A
This Sunricher LED controller is a versatile and powerful solution for controlling multi-color LED lighting. It's ideal for a wide range of applications where precise and reliable DMX control is needed.
Key Features and Benefits
- DMX512 and RDM Support: Offers both DMX512 and RDM (Remote Device Management) protocols for advanced control and monitoring.
- Multiple Connectivity Options: Features both XLR 5-pin and RJ45 connectors for flexible integration into your existing lighting setup.
- High Current Capacity: Provides 12 channels, each capable of delivering 5A of current, suitable for powering a variety of LED fixtures.
- Robust Construction: Built with a durable metal housing for reliable performance in demanding environments.
- User-Friendly Interface: Includes a digital display and intuitive buttons for easy setup and configuration.
- Versatile Control Modes: Supports both Master and Decoder modes, offering flexibility in how you integrate it into your lighting system.
Applications
This DMX LED controller is perfect for:
- Stage lighting
- Architectural lighting
- Entertainment venues
- Retail displays
- And more!
Why Choose This Product?
The Sunricher LED controller DMX512, RDM, XLR 5pin, RJ45, 12x5A offers a combination of features, performance, and reliability that make it a top choice for professionals and enthusiasts alike. Its robust design, multiple connectivity options, and high current capacity ensure that it can handle the demands of even the most challenging lighting projects.
| Feature | Description |
|---|---|
| Brand | Sunricher |
| Protocol | DMX512, RDM |
| Connectors | XLR 5pin, RJ45 |
| Channels | 12 |
| Current per Channel | 5A |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
