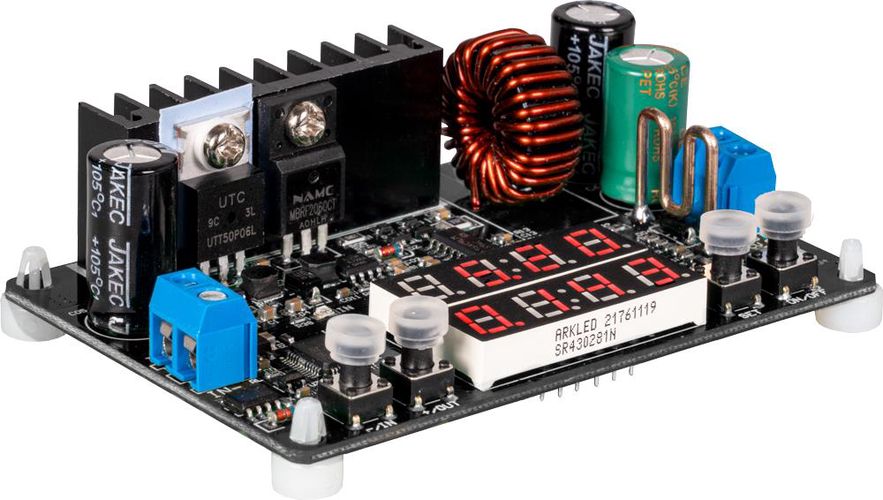

Joy-iT Step Down Voltage Converter ( DC )

This voltage converter module can convert input voltages from 6 - 40 V down to an output voltage of 0 - 32 V.
The segment can show input and output voltage as well as output current.
The module can be used in constant voltage or constant current mode.

Technical data:

Model: Step-down converter with adjustable output

Special feature: Current and voltage display on the module, Constant voltage and constant current operation

Input voltage: 6 - 40 V

Output voltage: 0 - 32 V

Output current: Max. 5 A

Output power: Max. 160 W

Connector: 2 x 2 pin screw terminal

Output voltage resolution: 0,01 V

Output current resolution: 0,001 A

Output voltage accuracy: ± (0,5% +3 digits)

Output current accuracy: ± (1% +5 digits)

Residual ripple (at 40 V to 32 V / 5 A): 100 mVpp

Input to output voltage ratio: x1,1
