Joy-iT PIR Motion dectector sensor
Product Code: SBC-PIR
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Joy-iT PIR Motion dectector sensor
Useful information
Specifications
Supplier product description

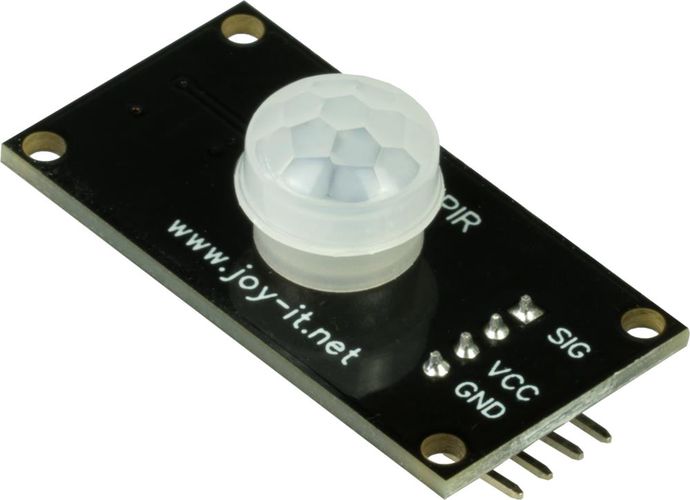

The sensor on this module is a pyroelectric infrared sensor which detects movement in the detection area of the Fresnel lens and then outputs a "HIGH" signal at the sensor output pin "SIG" for 3 seconds.
Afterwards the signal changes back to the "LOW" state.
The soldered potentiometer is used for variable range adjustment.
With the help of this module and a microcontroller such as Raspberry Pi or Arduino, it can be used for safety systems or automation, among others.
Afterwards the signal changes back to the "LOW" state.
The soldered potentiometer is used for variable range adjustment.
With the help of this module and a microcontroller such as Raspberry Pi or Arduino, it can be used for safety systems or automation, among others.
Technical data:
Sensor: PIR Motion Detector
Operating principle: Pyroelectric infrared rays
Special feature: Reach infinitely variable
Supply voltage: between 3-5 Volts
Module interface: 4 Pins
Detector chip: BIS0001
Detection angle: 120°
Detection range: max. 6 meters (3 meters standard)
Variable detection range via potentiometer: Adjusting the sensitivity controller on the module board using a cross screwdriver
Useful information
Supplier parameters
Product code
SBC-PIR
Brand
Joy-iT
Supplier's product code
SBC-PIR
Product ID
U-2314990
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
