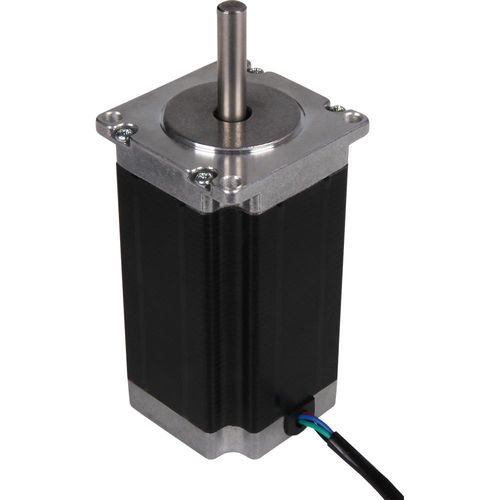

Joy-iT NEMA 23-03 Stepper motor

This NEMA-23 stepper motor suits for your project, anyhow with CNC or robotics, if you're looking for high performance.
This motor stands out with its high holding torque of 3 Nm .

Technical data:

Specification: 57SHD4934-34B

Shaft dimensions: Ø 7,5 x 32 mm (single shaft)

Connection: 4 -core cable

Steps per revolution: 200

Holding torque: 3 Nm

Rated voltage: 8.4 V

Rated current: 3 A

Step angle: 1.8°

Amount of phases: 2

Phase resistance: 2.8 Ω

Phase inductivity: 4.2 mH

Isolation resistance: Min. 100 MΩ at 500 V DC

Isolation class: B (130°)

Rotational inertia: 260 g·cm²

Detent torque: 0,04 Nm

Operating temperature: -10 - 50 °C
