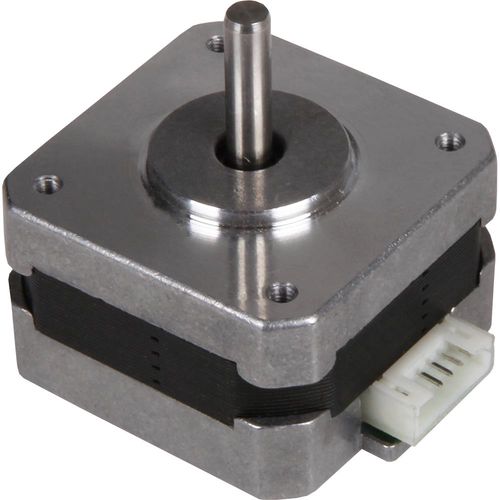

Joy-iT NEMA 17-03 Stepper motor

This stepper motor can be optimally used for tasks in the areas of automation, CNC (f. e. engraving lasers, 3D printers, milling machines, etc.), or robotic.
The compact design and the low weight predestine this stepper motor for projects with low building space / weight capacity.

Technical data:

Specification: 42SHD0513-20

Shaft dimensions: Ø 5 x 18 mm

Connection: 6-pole socket (JST), 4 Pins used

Steps per revolution: 200

Holding torque: 0.2 Nm

Rated voltage: 5 V

Rated current: 1.2 A

Step angle: 1.8°

Amount of Phases: 2

Phase resistance: 4.2 Ω

Phase inductivity: 5.6 mH

Isolation resistance: Min. 100 MΩ at 500 V DC

Isolation class: B (130°)

Rotational inertia: 38 g·cm²

Detent torque: 0,012 Nm

Operating temperature: -10 - 50 °C
