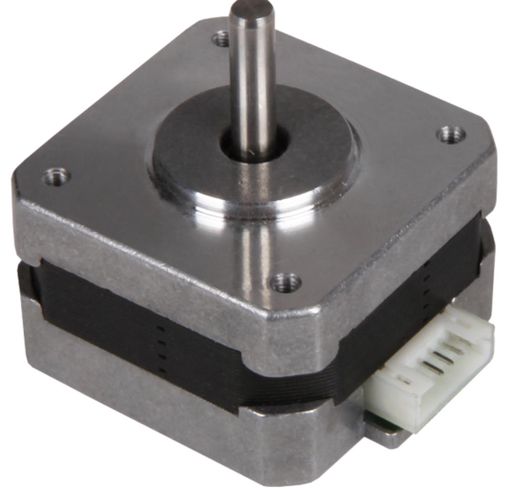

Joy-iT NEMA 14-01 Bipolar stepper motor
Product Code: NEMA14-01
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Joy-iT NEMA 14-01 Bipolar stepper motor
Specifications
Supplier product description
This small sized stepper motor is optimal for smaller tasks in automation, CNC (e. g. laser engraver, 3d printer, etc), or robotic.
The small design and the little weight predestine this stepper motor for projects with limited space and / or limited weight capacity.
The small design and the little weight predestine this stepper motor for projects with limited space and / or limited weight capacity.
Technical data:
Shaft dimensions: Ø 5 x 16 mm (single shaft)
Specification: 35SHD0001-20B
Connection: 6 pole socket (JST), 4 Pins used
Steps per revolution: 200
Holding torque: 0.1 Nm
Step angle: 1.8 °
Rated voltage: 8 V
Rated current: 0.4 A
Amount of phases: 2
Phase resistance: 20 Ω
Phase inductivity: 20 mH
Isolation resistance: min. 100 MΩ at 500 V
Isolation class: B (130 ° C)
Rotational inertia: 12 g·cm²
Detent torque: 0.008 Nm
permitted Operating temperature: -10 - 50 ° C
Supplier parameters
Product code
NEMA14-01
Brand
Joy-iT
Supplier's product code
NEMA14-01
Product ID
U-2314911
