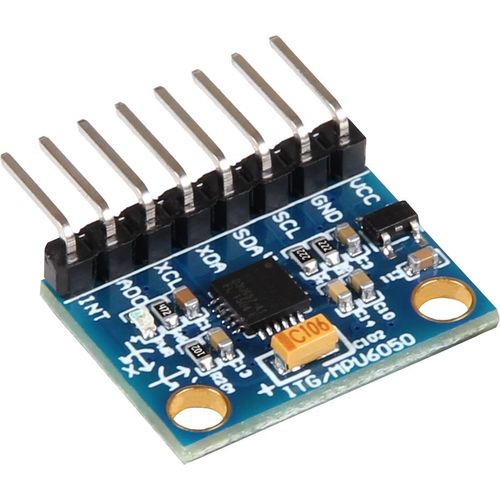

Joy-iT Gyroscope / Accelerometer Motion Sensor (MPU6050)
The JOY-IT SEN-MPU6050 is a 6-axis motion sensor module that combines a 3-axis gyroscope and a 3-axis accelerometer. This allows for the simultaneous measurement of angular velocity and linear acceleration, providing a comprehensive understanding of motion in three-dimensional space.
Key Features and Functions
- Module Chip: MPU6050
- Axes: 3 acceleration and 3 gyroscope axes
- Degrees of Freedom: 6 (simultaneous)
- Voltage Supply: 3.3 - 5 V DC
- Interface: I²C
- Built-in: 16-bit AD converter and Low-Dropout regulator
- Pin Spacing: 2.54 mm
Applications
This versatile sensor is suitable for a wide range of applications, including:
- Robotics
- Motion tracking
- Gaming
- Virtual reality
- Balance and posture detection
- Inertial measurement units (IMUs)
Why Choose This Product?
The JOY-IT SEN-MPU6050 offers a high degree of accuracy and precision, making it an ideal choice for projects requiring reliable motion data. Its compact size and ease of use make it a convenient and versatile option for various applications. The I2C interface simplifies integration into existing systems.
Technical Data
| Parameter | Value |
|---|---|
| Accelerometer Measurement Range | ± 2, ± 4, ± 8, ± 16 g |
| Accelerometer Sensitivity | 16384 LSB/g (±2g), 8192 LSB/g (±4g), 4096 LSB/g (±8g), 2048 LSB/g (±16g) |
| Gyroscope Measurement Range | ± 250, ± 500, ± 1000, ± 2000 °/s |
| Gyroscope Sensitivity | 131 LSB/dps (±250 dps), 65.5 LSB/dps (±500 dps), 32.8 LSB/dps (±1000 dps), 16.4 LSB/dps (±2000 dps) |
| Temperature Sensor Measuring Range | -40 to 85 °C |
| Temperature Sensor Sensitivity | 340 LSB/°C |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
Supplier product description
It has 8 Pins with a spacing of 2.54 mm and an I2C interface.
Also, a 16-Bit AD Converter and a Low-Dropout regulation is built in.
Technical data:
Module chip: MPU6050
Voltage Supply: 3.3 - 5 V DC
Degrees of Freedom: 6 x
Interface: I²C
Built-in Chip: 16-bit AD converter
Pins: 8 x
Pin spacing: 2.54 mm
Accelerator measurement range: ± 2, ± 4, ± 8, ± 16 g
Accelerator sensitivity: 16384 LSB/g ±2g, 8192 LSB/g ± 4g, 4096 LSB/g ± 4g, 2048LSB/g ±16g
Gyroscope measurement range: ± 250. ± 500,± 1000, ± 2000 °/s
Gyroscoep sensitivity: 131 LSB/dps ± 250 dps, 65,5 LBS/dps ± 500 dps, 32,8 LBS/dps ± 1000 dps, 16,4 LBS/dps ± 2000 dps
