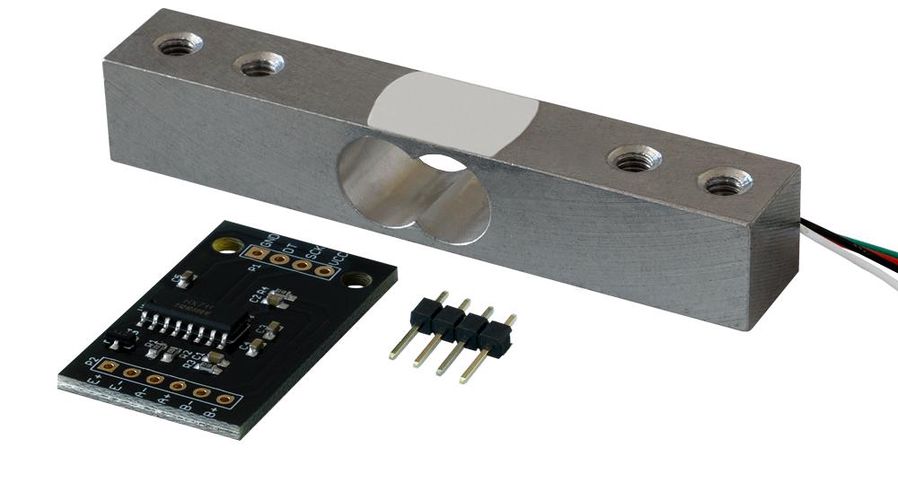

Joy-iT Load Cell (1 Kg) inclusive amplifier board
Product Code: SEN-HX711-01
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Joy-iT Load Cell (1 Kg) inclusive amplifier board
Useful information
Specifications
Supplier product description
With this load cell including amplifier board you can build your own scale in combination with a microcontroller or single board computer. On the amplifier board is a HX711 24 bit A/D converter to convert the analog signal of the load cell into a weight with high accuracy. There are a lot of application examples online for this converter due to its high popularity.
Technical data:
Special feature: Integrated 24 bit A/D-converter
Measuring range: Up to 1 Kg
Load cell accuracy: ±0,02% F.S
Supply voltage: 2,6 V ~ 5,25 V
Current consumption: < 1,5 mA
Interface: Serial; 2-Wire
Cable length: approx. 25cm
Dimensions PCB: 34,2 x 20 x 3 mm
Dimensions load cell: 75 x 15 x 14,2 mm
Useful information
Supplier parameters
Product code
SEN-HX711-01
Brand
Joy-iT
Supplier's product code
SEN-HX711-01
Product ID
U-2701299
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
