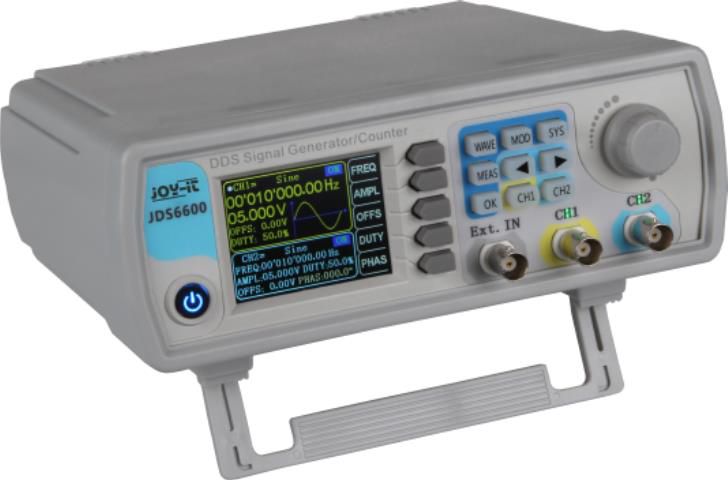

Joy-iT JDS6600 Lite Mobile Signal generator and frequency counter
Product Code: JT-JDS6600-Lite
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Joy-iT JDS6600 Lite Mobile Signal generator and frequency counter
Useful information
Specifications
Supplier product description
The JT-JDS6600 Lite is a 2 channel signal generator which produces signals up to 15 MHz.
The product JT-JDS6600 Lite is a simplified version of the JT-JDS6600.
The two devices differ essentially in the frequency range of the signals that can be generated.
The signal generator JT-JDS6600 can generate signals up to 60Mhz, whereas the simplified version can only generate signals up to 15Mhz.
It is in different areas of measuremet technology useable because of its different curve shapes like sine, square, triangle, pulse, half-wave and others.
Additionally, it is an 1 channel frequency allocation integrated.
With its frequency accuracy of ±20ppm and its stability of ±1ppm/3h, it offers a perfect signal quality and flexibility.
Through its 2,4" TFT color display it has the operator friendliness guaranteed which reveals most diverse areas of application.
The product JT-JDS6600 Lite is a simplified version of the JT-JDS6600.
The two devices differ essentially in the frequency range of the signals that can be generated.
The signal generator JT-JDS6600 can generate signals up to 60Mhz, whereas the simplified version can only generate signals up to 15Mhz.
It is in different areas of measuremet technology useable because of its different curve shapes like sine, square, triangle, pulse, half-wave and others.
Additionally, it is an 1 channel frequency allocation integrated.
With its frequency accuracy of ±20ppm and its stability of ±1ppm/3h, it offers a perfect signal quality and flexibility.
Through its 2,4" TFT color display it has the operator friendliness guaranteed which reveals most diverse areas of application.
Technical data:
Channels: 2 Channel generator, 1 Channel frequency meter
Frequency-Range ( Sine ): 0 - 15MHz
Frequency-Range ( Square, Triangle ): 0 - 15MHz
Frequency-Range ( TTL, pulse ): 0 - 6MHz
Measuring range Frequency counter: 0 - 100 MHz
Frequency Accuaracy: ±20ppm
Frequency Stability: ±1ppm/3h
Sampling rate: 266 MSa/s
Display Mode: TFT LCD Color display
Vertical shaft resolution: 14 bits
Amplitude range: < 10MHz: 0-20 Vpp; > 10 MHz: 0-10 Vpp
Amplitude resolution: 1 mV
Amplitude stability: ± 5%/5h
Amplitude flatness: < 10MHz: ± 5%; > 10 MHz: ± 10%
Impedance of output: 50Ω ±10%
Display Size: 2,4 inch
Useful information
Supplier parameters
Product code
JT-JDS6600-Lite
Brand
Joy-iT
Supplier's product code
JT-JDS6600-Lite
Product ID
U-2314888
