Joy-it DSO-LCR500 Oscilloscope, Signal generator 1 kHz - 100 kHz Triangle, Pulse, Rectangle, Sinus
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
DSO-LCR500 combines the advantages of a digital oscilloscope and those of a multifunctional component tester in a compact and high-quality housing. The digital oscilloscope allows ambitious tinkerers to evaluate time-dependent signals without having to resort to expensive measurement technology.
The multifunctional component tester also enables the fast and automatic detection of components. Furthermore, our DSO-LCR500 has additional, helpful functions such as a signal generator, an infrared signal decoder and measurement of Zener diodes, DS18B20 sensors and DHT11 sensors.
The device is equipped with a 1500 mAh battery, which can be conveniently charged via USB-C. The integrated, fold-out stand makes operation even easier.
Functions:
- Digital oscilloscope
- Component tester
- continuity tester
- Signal generator
- Measurement of Zener diodes
- Measurement of DS18B20 sensors
- Measurement of DHT11 sensors
- Infrared decoder
Technical data:
Battery: 1500 mAh lithium battery, rechargeable via USB-C
Display: 2.4" TFT color display, LED backlight, 320x240 pixels
Sampling rate: 10 MS/s
Bandwidth: 0 - 500 kHz
Input resistance: 1 MOhm
Capacitor measurement: 25 PF - 100 MF
Resistance measurement: 0.01 Ohm - 50 MOhm
Coil measurement: 10 UH - 1000 UH
Battery measurement: 0.01 - 4.5 V

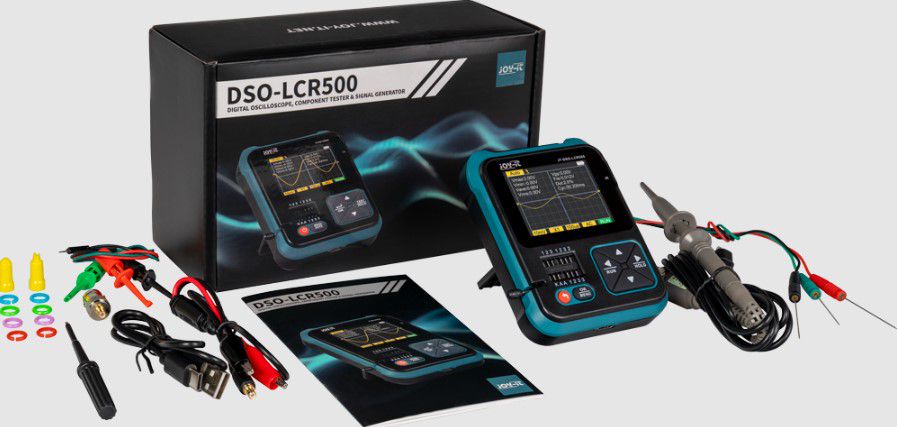

Scope of delivery:
JT-DSO-LCR500, quick start guide, USB-C cable, 3x test clamp, 3x SMD test probes, probe, crocodile clip cable, BNC adapter
Useful information
Specifications
Experimental product description generated by artificial intelligence
Joy-it DSO-LCR500: Your All-in-One Electronics Testing Solution
The JOY-IT DSO-LCR500 is a versatile 3-in-1 device combining a digital oscilloscope, a multifunctional component tester, and a signal generator. This compact and high-quality device is perfect for hobbyists and professionals alike.
Key Features and Functions
- Digital Oscilloscope: Analyze time-dependent signals with ease.
- Multifunctional Component Tester: Quickly and automatically identify various components.
- Signal Generator: Generates signals with frequencies ranging from 1 kHz to 100 kHz in various waveforms (triangle, pulse, rectangle, and sine).
- Additional Functions: Measures Zener diodes, DS18B20 sensors, and DHT11 sensors; includes an infrared signal decoder.
- Convenient Design: Features a 1500 mAh rechargeable battery (USB-C charging) and an integrated, fold-out stand.
- User-Friendly Interface: Intuitive operation with a clear display.
Why Choose the Joy-it DSO-LCR500?
This device offers a comprehensive suite of testing capabilities in a single, portable unit. It eliminates the need for multiple, expensive pieces of equipment, making it an ideal solution for both beginners and experienced electronics enthusiasts. Its compact size and rechargeable battery allow for convenient use in various settings.
Applications
The DSO-LCR500 is suitable for a wide range of applications, including:
- Circuit debugging and troubleshooting
- Component testing and identification
- Signal generation and analysis
- Educational purposes
- DIY electronics projects
Included in the Package
The package includes the DSO-LCR500 device, a user guide, USB-C cable, test clips, SMD test probes, a probe, crocodile clip cable, and a BNC adapter.
Order your Joy-it DSO-LCR500 today and experience the convenience and versatility of this all-in-one electronics testing solution!
