Joy-iT DPS5005 Programmable laboratory power supply
Product Code: JT-DPS5005
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

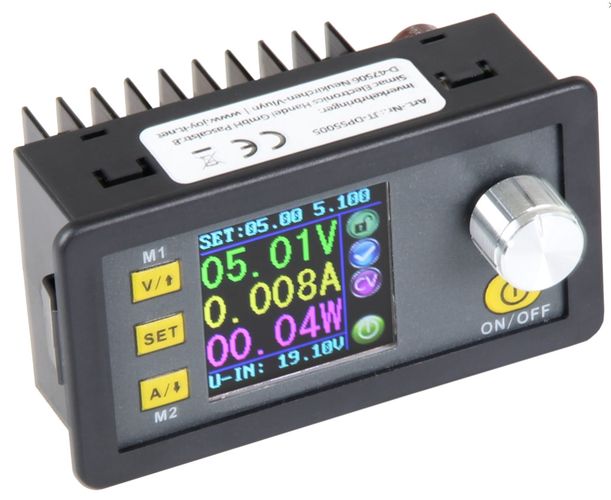

This programmable module for controlling voltage with a constant voltage and constant current brings together an analog integration and digital control functions in one device. This device has an internal storage and a color OLED Display with 3,6 cm (1.44'') to display important data. All required settings are set up with three buttons and a knob.
This high precision and compact structure enables a huge area of application. High-quality components and the possibility of communication interfaces make this power supply stand out.
In addition, you can supplement the laboratory power supply with the optionally available case, BT and USB modules. This your laboratory power supply receives a suitable case and you can communicate via USB or BT with the laboratory power supply, retrieve data and make settings.
SPECIFICATIONS
MODEL: DPS5005
SPECIAL FEATURES: Remotely controllable, programmable, slim design
INPUT VOLTAGE: 6 - 55 V (DC)
OUTPUT VOLTAGE: 0 - 50V
OUTPUT CURRENT: 0 - 5A
OUTPUT POWER: 0 - 250W
VOLTAGE RESOLUTION: 0.01 V
CURRENT RESOLUTION: 0.01 A
RIPPLE: 100mV(pp) at max. workload
DISPLAY SIZE: 1.44“
CASE CUT-OUT: 39 x 71 mm
DIMENSIONS: 42 x 45 x 80 mm
Useful information
Specifications
Other products in this category
Supplier product description
This programmable module for controlling voltage with a constant voltage and constant current brings together an analog integration and digital control functions in one device.
This device has an internal storage and a color OLED Display with 3,6 cm (1.44'') to display important data.
All required settings are set up with three buttons and a knob.
This high precision and compact structure enables a huge area of application.
High-quality components and the possibility of communication interfaces make this power supply stand out.
In addition, you can supplement the laboratory power supply with the optionally available case, BT and USB modules.
Thus your laboratory power supply receives a suitable case and you can communicate via USB or BT with the laboratory power supply, retrieve data and make settings.
This device has an internal storage and a color OLED Display with 3,6 cm (1.44'') to display important data.
All required settings are set up with three buttons and a knob.
This high precision and compact structure enables a huge area of application.
High-quality components and the possibility of communication interfaces make this power supply stand out.
In addition, you can supplement the laboratory power supply with the optionally available case, BT and USB modules.
Thus your laboratory power supply receives a suitable case and you can communicate via USB or BT with the laboratory power supply, retrieve data and make settings.
Technical data:
Model: DPS5005
Special features: Remotely controlable, programmable, slim design
Input Voltage: 6 - 55 V ( DC )
Output Voltage: 0 - 50V
Output Current: 0 - 5A
Output Power: 0 - 250W
Voltage Resolution: 0.01 V
Current Resolution: 0.01 A
Ripple: 100mV(pp) at max. workload
Display Size: 1.44 inch
Case Cut-Out: 39 x 71 mm
Useful information
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
