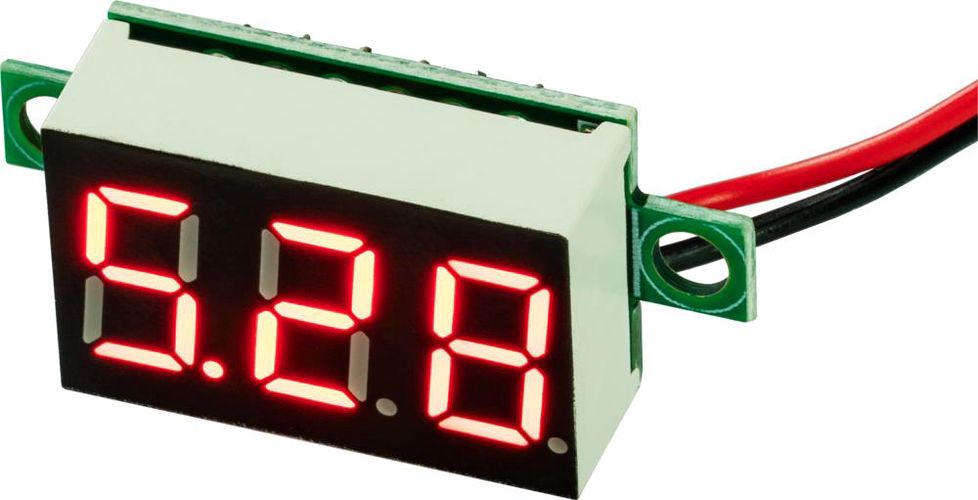

Joy-iT Digital voltmeter 3 digit

This small mini voltmeter for voltages from 3 to 30 V has a 3 digit 7-segment display (0.36 Inches). The measured value can be displayed with 1 or 2 decimal digits and is refreshed every 0.3 seconds. This measurement device is outstanding by its very low power consumption of less than 30 mA and can be mounted using the 2 mounting holes.
If a separate 3 V power supply is connected, voltages from 0 to 30 V can be measured.

Technical data:

Display: 0.36 inch LED 7-segment display, shows 1 or 2 deci-mal digits

Special features: Power supply via measurement voltage Reverse polarity protection

Operating voltage: 3 V DC (via measurement voltage)

Measurement voltage: 3 - 30 V DC 0 - 30 V DC (with separate 3 V power supply)

Measurement accuracy: 0.1 %

Current consumption: < 30 mA

refresh rate: approx. 300 ms

input resistance: > 100 kΩ

Operating temperature: -10 to 65 °C
