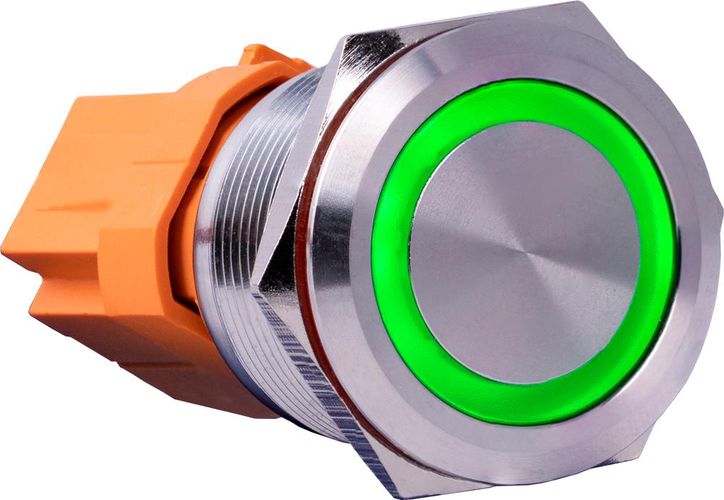

Joy-iT 15A latching steel button with green LED

Joy-iT 15A latching steel button with green LED

This switch button convinces with high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classifications IP67 (dust and water), IK10 (impact) and PA66 (flame). Thanks to the protection classifications, the wide temperature range and the durability, the switch button is suitable for many applications. The concave design of the surface is pleasant for the fingers.
The scope of delivery already includes the necessary connection cables and connectors.

Technical data:

Max. Switching current: 15 A

Core and outer material: Stainless steel

Contact material: silver

Pin material: H65 gold plated

Key depth: 3.5 mm

Operating mode: latching

Degree of protection: IP67 and IK10

Special features: bright LED (green)

Dimensions mounting hole: Ø 22.2 x ≤9 mm

Overall dimensions: Ø 24.8 x 34.5 mm

Rated load: 15 A / 250 V resistive, 4 A / 250 V inductive

LED voltage: 3 - 8 V DC

LED lifetime: 40 000 hrs.

Connections: 2x NO1, 2x NO2

Insulation resistance: ≥ 1000 MΩ

Breakdown current: 1000 V AC min.

Contact resistance: ≤ 50 mΩ

Torque nut: 5 - 14 Nm

Base material: PA66 flame retardant

Perm. ambient temperature: -30 - 80°C

Scope of delivery: Push-button,connector, 4x 150 mm cable
