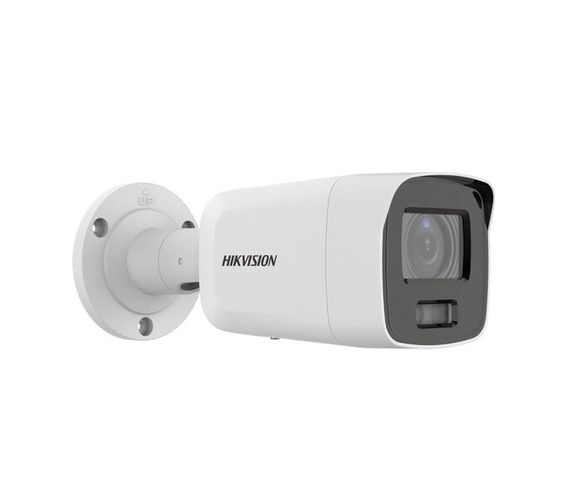

IP camera BULLET 8MP, F2.8, ColorVu, AcuSense, H265+, IP67, POE, IR up to 30m, DS-2CD2087G2-L, Hikvision

Camera

Image Sensor

1/1.2″ Progressive Scan CMOS

Min. Illumination

0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

130 dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Depth of Focus

2.8 mm: 4.5 m to ∞

Lens Type & FOV

2.8 mm, horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°

Aperture

F1.0

DORI

DORI

2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 9 m

Illuminator

White Light Range

40 m

Smart Supplement Light

Yes

Video

Max. Resolution

3840 × 2160

Main Stream

50Hz: 20 fps (3840 × 2160, 3072 × 1728)
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160, 3072 × 1728)
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main Stream supports

H.265+

Main Stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Audio Compression

-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate

-U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC)

Audio Sampling Rate

-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

-U: Yes

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+


Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

Built-in Microphone

-U: Yes

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (human and vehicle), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Scene change detection

Deep Learning Function

Face Capture

Yes

Perimeter Protection

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

Linkage Method

Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email

Web Client Language

33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Software Reset

Yes

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3

Power Consumption and Current

12 VDC, 0.6 A, max. 7 W
PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W

Power Interface

Ø5.5 mm coaxial power plug

Material

Front cover: metal, back cover: metal

Screw Material

SUS304

Camera Dimension

78.8 × 78.6 × 215.2 mm (3.1″ × 3.1″ × 8.5'')

Package Dimension

315 × 137 × 141 mm (12.4" × 5.4" × 5.6")

Camera Weight

Approx. 860 g (1.9 lb.)

With Package Weight

Approx. 1265 g (2.8 lb.)

Approval

Class

Class B

EMC

FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016)

Safety

UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)
