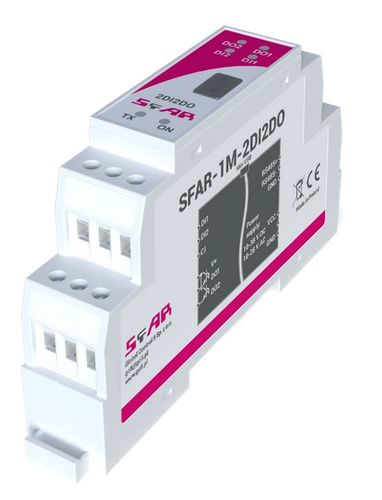

SFAR mini industrial expansion module - Modbus RTU/ASCII, 2 DI, 2DO. 10-38 V DC; 10-28 V AC
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
SfAR-1M-2DI2DO can be used as a controller’s I/O extension, which, thanks to its unique features, fits a variety of applications, for example, measuring the working time of devices or connecting valves without Modbus support into the Modbus network.
The module has 2x digital inputs (DI) and 2x digital outputs (DO). Digital inputs can work as fast pulse counters with up to 1000 counts per sec, or timers measuring the ON state, and also offering a possibility to connect 2 encoders. Digital inputs support both PNP and NPN input types.
Digital outputs are PNP transistor outputs sending voltage signals. All inputs and outputs are isolated from the logic with opto-isolators.
A built-in RS485 interface allows easy connection over Modbus RTU/ASCII protocol. A 32-bit ARM core processor provides fast processing and communication.
The module is equipped with a set of LEDs used to indicate the status of I/O, power supply, and RS485 communication.
Configuration of the modules is carried out with our free software, the SfAR Configurator. A built-in mini USB allows for performing a primary configuration of the unit without additional power supply.
Useful information
Specifications
Experimental product description generated by artificial intelligence
SFAR mini industrial expansion module - Modbus RTU/ASCII, 2 DI, 2 DO
The iSMA CONTROLLI SFAR-1M-2DI2DO is a versatile expansion module designed for industrial automation applications. This compact device offers a cost-effective solution for extending the I/O capabilities of your PLC system.
Key Features and Functions
- Two Opto-isolated Digital Inputs: Capable of functioning as high-speed pulse counters (up to 1kHz) supporting PNP or NPN input types.
- Two Opto-isolated Digital Outputs: PNP transistor outputs with a maximum load of 250mA and 55V DC.
- Modbus RTU/ASCII Communication: Enables seamless integration with PLCs and other Modbus-compatible devices.
- Built-in LEDs: Provide clear visual indication of input, output, and communication status for easy diagnostics.
- Mini USB Port: Allows for initial configuration without the need for external power.
- Space-Saving Design: Compact DIN rail mounting for easy installation.
Applications
The SFAR-1M-2DI2DO is ideal for a wide range of industrial applications where expansion of digital inputs and outputs is required. It's suitable for various automation tasks, including:
- Machine control
- Process monitoring
- Data acquisition
Why Choose This Product?
The iSMA CONTROLLI SFAR-1M-2DI2DO offers a combination of features that make it a superior choice for industrial automation:
- Reliability: Opto-isolation ensures protection against voltage spikes and noise.
- Flexibility: Supports both Modbus RTU and ASCII protocols.
- Ease of Use: Simple configuration via mini USB port and clear LED indicators.
- Cost-Effectiveness: Provides a cost-effective solution for expanding I/O capabilities.
Power Supply: 10-38V DC; 10-28V AC
