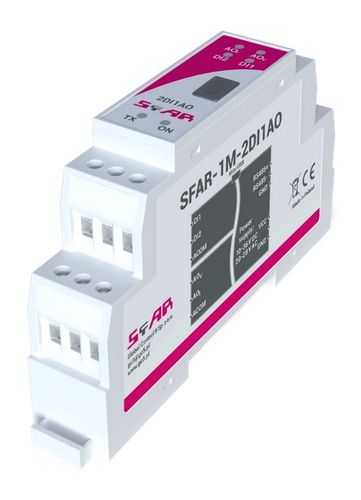

SFAR mini industrial expansion module - Modbus RTU/ASCII - 2 DI, 1 AO. 10-38 V DC; 10-28 V AC
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
SfAR-1M-2DI1AO is designed for connecting inverters without Modbus support into the Modbus network.
The module has 2x digital inputs (DI) and 1x analog output (AO). Digital inputs can work as fast pulse counters with up to 1000 counts per sec, or timers measuring the ON state, and also offering a possibility to connect 2 encoders. Digital inputs support both PNP and NPN input types. Analog output can work as 0-10 V DC, 0-20 mA, or 4-20 mA output. All outputs are isolated from the logic with opto-isolators.
A built-in RS485 interface allows easy connection over Modbus RTU/ASCII protocol. A 32-bit ARM core processor provides fast processing and communication.
The module is equipped with a set of LEDs used to indicate the status of I/O, power supply, and RS485 communication.
Configuration of the modules is carried out with our free software, the SfAR Configurator. A built-in mini USB allows for performing a primary configuration of the unit without additional power supply.
