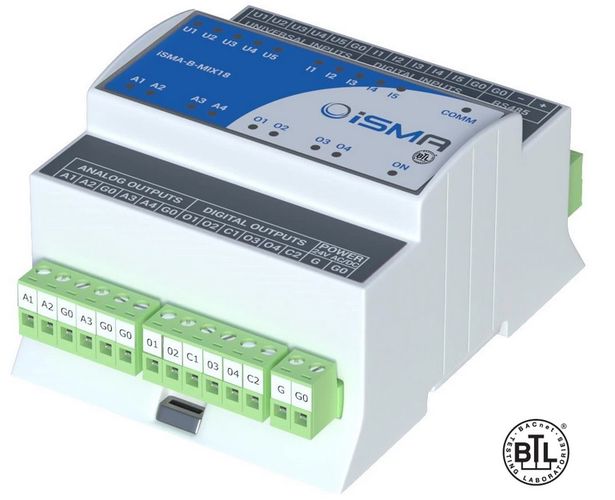

Expansion module iSMA-B-MIX18 5, Modbus RTU/ASCII, BACnet MSTP, 5DI, 5UI, 4AO, 4DO
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
MIX series of I/O modules with RS485 and IP (2x Ethernet) have been designed for building distributed control systems using MAC36, AAC20 or another controller. Each MIX module is equipped with the most commonly used types od I/O in building automation. Depending on the version, the device will have 18 or 38 inputs and outputs, a mix of all types of I/O in one unit. All I/O modules have BTL and UL certificates.
The modules with RS485 and IP (2x Ethernet) are factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU, TCP/IP) and BACnet (MSTP, IP), which are selected using DIP switches. Rotary switches are used to set the module address, which facilitates and accelerates the process of commissioning the system. Built-in mini USB allows for the initial configuration of the unit without external power supply.
Built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enables to connect additional modules/devices that communicate via Modbus RS485.
Thanks to supporting open communication standards MIX modules can be installed in both new and completed installations, as part of existing BMS. This versatile device will fit any BMS perfectly.
Useful information
Specifications
Experimental product description generated by artificial intelligence
Expansion module iSMA-B-MIX18 5
The iSMA CONTROLLI iSMA-B-MIX18 5 is a versatile and powerful expansion module designed for building distributed control systems. This I/O module is perfect for various applications in building automation and industrial control.
Key Features
- Modbus RTU/ASCII, BACnet MSTP support: Ensures seamless integration with existing systems.
- 5 Digital Inputs, 5 Universal Inputs, 4 Analog Outputs, 4 Digital Outputs: Offers a wide range of I/O options to suit diverse needs.
- High accuracy and speed: The module provides precise measurements and fast response times.
- Easy addressing and configuration: Rotary switches simplify the setup and commissioning process.
- Built-in Modbus Gateway: Enables connection of additional Modbus RS485 devices.
Why Choose iSMA-B-MIX18 5?
The iSMA-B-MIX18 5 expansion module offers a unique combination of features that make it an ideal choice for a wide range of applications. Its support for multiple communication protocols, versatile I/O options, and ease of use make it a valuable asset for any control system.
| Feature | Description |
|---|---|
| Communication Protocols | Modbus RTU/ASCII, BACnet MSTP |
| Digital Inputs | 5 |
| Universal Inputs | 5 |
| Analog Outputs | 4 |
| Digital Outputs | 4 |
This I/O module is ideal for building automation, industrial control, and other applications requiring a flexible and reliable expansion solution.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
