Heat-shrinkable tubes allow to insulate the wires, thus ensuring their safety and reliability. Heat shrink tubing makes it easier to solve difficulties of connection and installation.

These heat-shrinkable tubes are usually made of special thermoplastic materials that have the property of shrinking at a certain temperature. When the tubing is heated to a critical temperature, it starts to shrink by enveloping the wires. This provides insulation, not only protecting wires from mechanical impact, but also prevents moisture, dust and other substances from entering the wire.

Heat shrink tubing can be used in both indoor and outdoor installations, including electrical wiring, telecommunications, automotive and many other applications. These tubes can also be used to repair the damaged area of the wire insulation.

Heat shrinkable tubing is a reliable and effective way to ensure the strength and durability of wires, even under extreme temperature conditions. Their use allows for a high quality and safe installation of the wires and reduces the risk of faults.

Application: Universal heat shrinkable tubes applied to perform electrical insulation, technical and moisture protection.
They assume a shape of the object on which they are shrinking down, form a tightly adherent layer of an insulating, anticorrosion and decorative character.

TECHNICAL DATA

Operating temperature: -55 up to +125°C
Shrink ratio: 2:1
The minimum shrink temperature: +115°C
Colour: Colorless
Not self-extinguishing, halogen-free
UV resistant
In accordance with REACH, RoHS

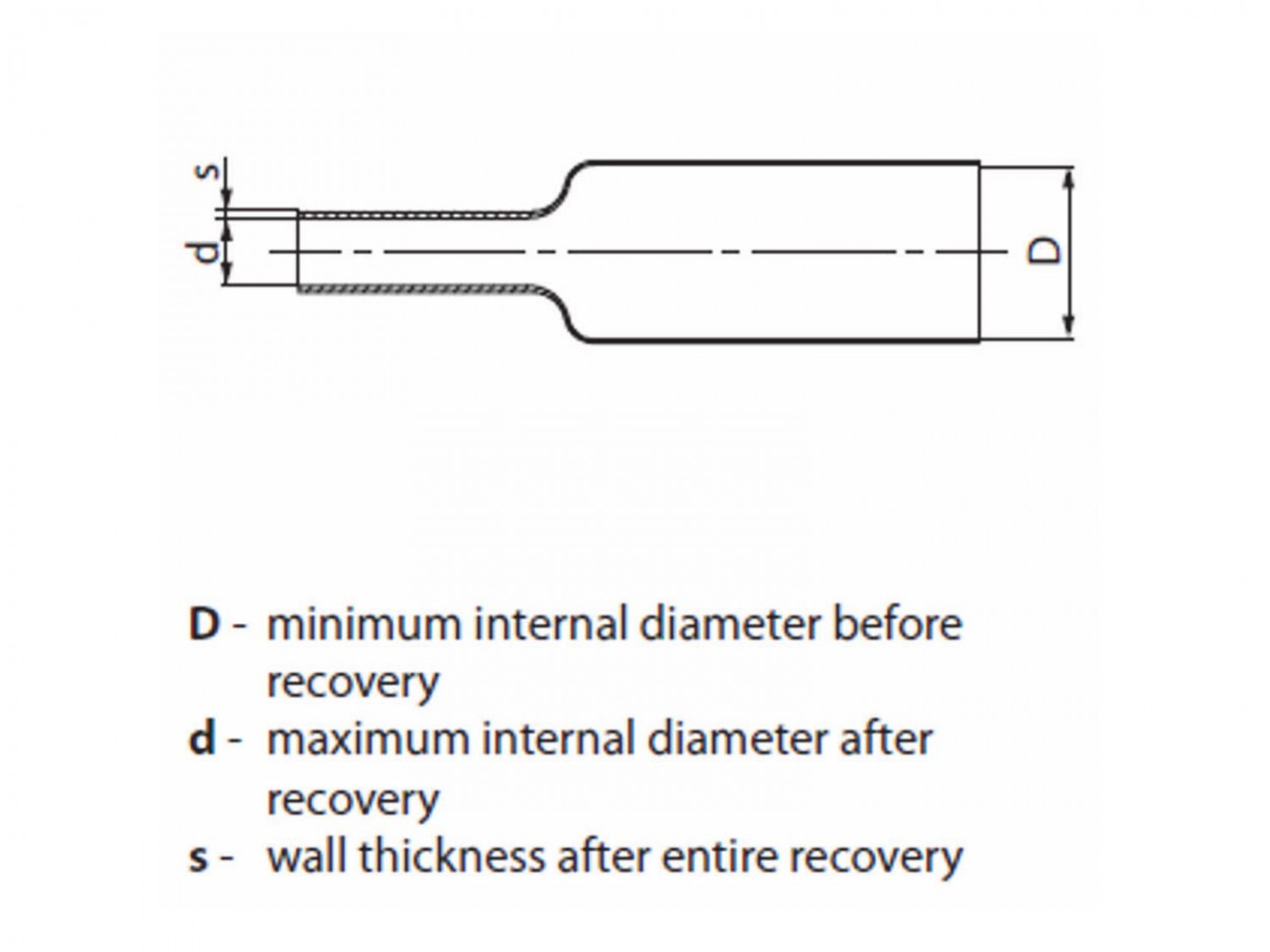

DIMENSIONS [mm]
D=12.7 d=6.4 s=0.6
