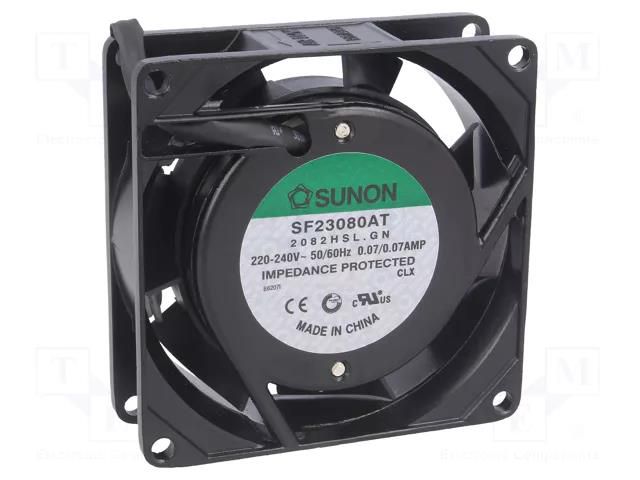

Fan: AC; axial; 230VAC; 80x80x25mm; 28.9m3/h(±5%); 29dBA; slide SUNON
Product Code: SF23080AT2082HS
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: AC; axial; 230VAC; 80x80x25mm; 28.9m3/h(±5%); 29dBA; slide SUNON
Useful information
Specifications
Supplier product description
Fan: AC; axial; 230VAC; 80x80x25mm; 28.9m3/h(±5%); 29dBA; slide
Useful information
Supplier parameters
Product code
SF23080AT2082HS
Cable length
0.33m
Current and power consumption tolerance
±15%
Current rating
70mA
Enclosure material
aluminium
Fan dimensions
80x80x25mm
Fan efficiency
28.9m<sup>3</sup>/h (±5%)
Flammability rating
UL94V-0
Frequency
50Hz
Impeller material
thermoplastic
Kind of Bearing
slide
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
500MΩ
Noise level
29dBA
Operating temperature
-10...70°C
Power consumption
14W
Rotational rate/speed
2300rpm
Static pressure
3.05mm H<sub>2</sub>O
Supply voltage
230V AC
Type of fan
AC
Wire size
24AWG
Brand
SUNON
Supplier's product code
SF23080AT2082HS
Product ID
U-322362
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
