Extralink HEXON | Switch | 16x 10/100/Mb/s, Desktop, EXTRALINK
Specifications
Supplier product description

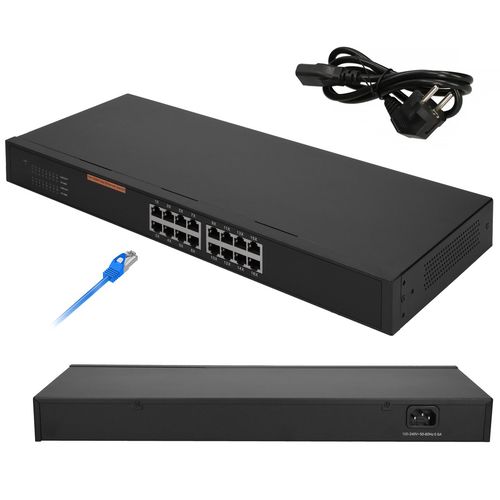

Extralink Hexon 16-port switch with 10/100Mbps ports
Extralink Hexon is an 16-port 10/100Mbps unmanaged Ethernet switch. It provides high performance Ethernet networking. The Extralink Hexon has 16 RJ45 ports with 10/100Mbps throughput with auto-negotiation. Extralink Hexon is a highly integrated, portable, easy-to-use device suitable for small and medium offices and home networks.
Data security
The switch uses store-and-forward technology, combining dynamic memory allocation to efficiently distribute data to each port. As the switch transmits and receives data, flow control ensures that data is not lost. LEDs indicate power and network status.
Features Extralink Hexon
Features Extralink Hexon
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full speed for maximum throughput.
- 3.2 Gbps switching capacity
- 4K Jumbo frame improves performance for large data transfers
- Auto-MDI/MDIX feature eliminates the need for patch cords
- Support for automatic learning of MAC addresses
- Auto-negotiation ports provide intelligent integration between 10 Mbps and 100 Mbps equipment
- Fanless design for quiet operation
- Plug and Play simplifies installation
- Power supply: AC 110-230V 50/60HZ
| LAN standard | Fast Ethernet 10/100Mb/s |
| Number of LAN ports | 16x [10/100M (RJ45)] |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Cloud-managed | No |
| Depth | 103 |
| Ethernet LAN data rates | 10,100 |
| Height | 35 |
| LED indicators | Activity, Link, Power |
| MAC address table | 4096 |
| Management | No |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Power (W) | Without PoE |
| Power connector | AC-in jack |
| Power consumption (max) | 4.5 |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | No |
| Rack mounting | Yes |
| Stackable | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Switching capacity | 3.2 |
| Switching layer | 2 |
| Traffic classification | Yes |
| Traffic shaping | No |
| Type of case | Rack (1U) |
| Web-based management | No |
| Width | 138 |
