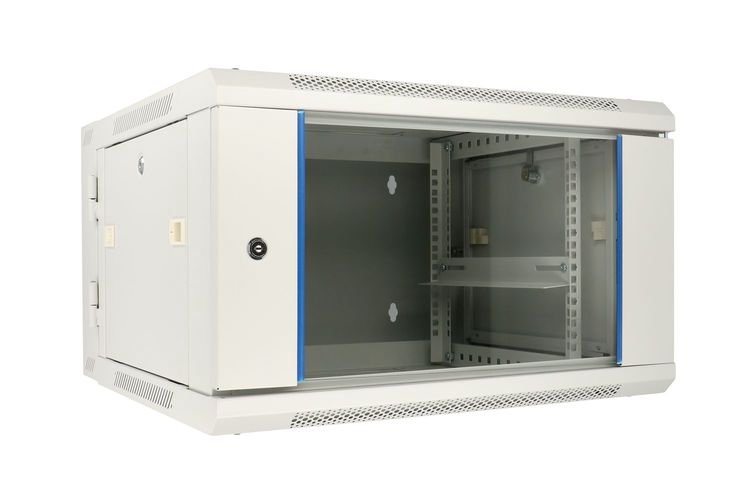

EXTRALINK rack cabinet AZH, 6U, 600x600, two-sectional
The Extralink rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The external walls are made of cold-rolled steel sheet, while the front door has a tempered glass pane with the possibility of opening to the left or right side. Two-section construction facilitates access to the installed components from the back.
Clearly marked cabinet height
Vertical rails have a corresponding height designation, which is 6U (unit). The total height of the cabinet is 37 cm.
Easy removal of side walls
Snap fasteners on the side walls allow for their disassembly. Locks and keys are included.
Fan-installed ceiling
On the ceiling of the cabinet there are 2 places to install fans for better cooling of the devices, as well as 2 additional passages for pulling out cables.
Cabinet construction - drawing
Features
Features
- Standard 19'' mounting, welded frame, reliable design
- The frame construction is prepared for self-assembly, which facilitates transport and saves shipping costs
- Standing/Wall Mounting
- Easy installation (patent)
- Removable side panels
- Holes for cable entry, both on the top cover and on the bottom panel
- Tempered glass front door, swivel angle exceeding 180 degrees
- Two-sectional construction
| Cabinet hight | 6U |
| Back door construction | Steel |
| Back door key lock | No |
| Colour | Grey |
| Depth | 750 |
| Frame type | Closed |
| Front door construction | Tempered glass |
| Front door key lock | Yes |
| Height | 470 |
| Key lock | Yes |
| Material | Glass, Steel |
| Maximum weight capacity | 30 |
| Product colour | Grey |
| Rack capacity | 6U |
| Rack rails | Yes |
| Removable back door | No |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panel construction | Steel |
| Side panel key lock | Yes |
| Side panels included | Yes |
| Size (imperial) | 48.3 |
| Type | Wall mounted rack |
| Type of doors | Glazed |
| Width | 600mm |
| Width | 600 |
