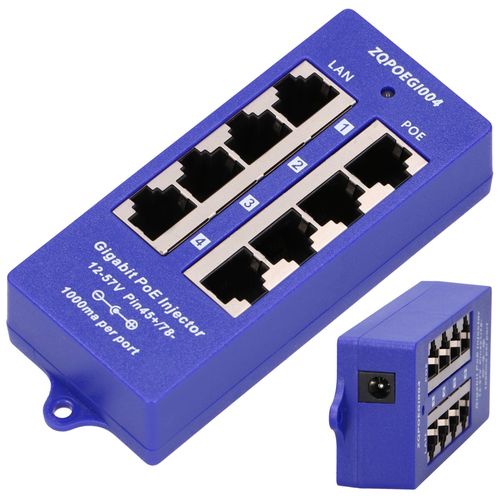

PoE injector 4 Gigabit ports - reliable power system
Extralink 4-port PoE injector supports 10/100/1000 M Ethernet throughput. RJ45 LAN connectors are designed to connect the switch/PC/HUB and pins 1/2, 3/6, 4/5 & 7/8 transmit data. The POE RJ45 connectors provide both data and PoE power, the pins 1/2, 3/6, 4/5 & 7/8 are for data and the pins 4/5 (+) & 7/8 (-) for power. The unit consists of 4 sets of RJ45 sockets and one power outlet up to 60 V DC. The power input has a diameter of 5.5 mm. The total output power must be less than the maximum input power of the AC-DC supply, otherwise a stronger AC-DC supply must be considered. The recommended power formula for the AC-DC adapter is 10 W per RJ45 kit (1 kit = 2 x RJ45 sockets). For example, 4 x 10 W = 40 W for a PoE panel with 4 ports.
Features
Features
- Compatible with any Ethernet switch
- Flexible power supply - from 12 V to 57 V DC
- 10/100/1000 Mbps Gigabit Ethernet support
- Ideal for IP cameras, VoIP, Wi-Fi
- 4-port PoE injector - 4 LAN ports and 4 LAN + PoE ports
LED lights
LED lights
- POWER OFF - no LED
- 4/5 (V+), 7/8 (V-) - green LED
- 4/5 (V-), 7/8 (V+) - red LED
| Data transmission speed | Gigabit Ethernet |
| Number of LAN ports | 4x 10/100/1000BaseTX (RJ45) |
| AC adapter included | No |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat5e,Cat6,Cat6a |
| Certification | CE, FCC |
| DC-in jack | Yes |
| Easy to install | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 1000 |
| Firmware upgradeable | No |
| Manual | No |
| Networking standards | IEEE 802.1af,IEEE 802.3at |
| Number of products included | 1 |
| Operating relative humidity (H-H) | 10 - 80 |
| Operating temperature (T-T) | 0 - 70 |
| Plug and Play | Yes |
| Power cord included | No |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 |
| Product colour | Black |
| Quick installation guide | No |
| Rack mounting | No |
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |
| Storage temperature (T-T) | -40 - 70 |
| Syslog | No |
| Type of assembly | Wall |
| Type of assembly | Other |
| Wall mountable | Yes |
| Wall mounting kit | No |
| Web-based management | No |
