Energy meter, 3-phase, DIN, 80A, with MID certificate, Thorgeon
Product Code: THORGEON-01006
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

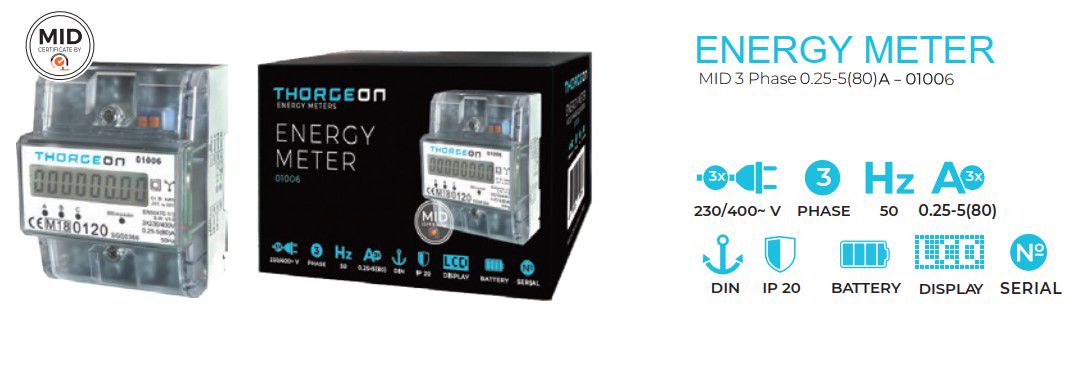

ENERGY METER MID 3 PHASE 0.25-5(80) A
TECHNICAL PARAMETERS
| VOLTAGE | 230V/240V~ |
| FREQUENCY | 50Hz |
| CURRENT | 0,25-5(32)A 0,25-5(45)A 0,25-5(50)A |
| STARTING CURRENT | 0.004LB |
| POWER CONSUMPTION | ≤8VA ≤0.4W |
| ACCURACY CLASS | 1 |
| STANDARD | IEC 62052-11 IEC 62053-21 EN50470-1/-3 |
| IMPULSE CONSTANT | 1000IMP/KWH |
| IMPULSE CONNECTION VOLTAGE | 12-27V; ≤27MA; MAX LENGHT OF LEAD 20M |
| IMPULSE WIDTH | 90MS, CONNECT TO TERMINAL 20&21 |
| LIMITS OF VALUES | MAX 60VDC, MAX 50MA |
| DISPLAY | LCD 5+2 |
| MOUNTING | DIN RAIL |
| PROTECTION CLASS | IP20 |
| TEMPERATURE RANGE | -20°~65°C |
| AVERAGE HUMIDITY VALUE OF YEAR | 75% (NONCONDENSING) |
Useful information
Specifications
SKU
363161
Weight
0.396 kg.
Warranty period (months)
24
Height, mm
100
Brand
Width, mm
76
Product code
THORGEON-01006
Depth, mm
65
