Product description

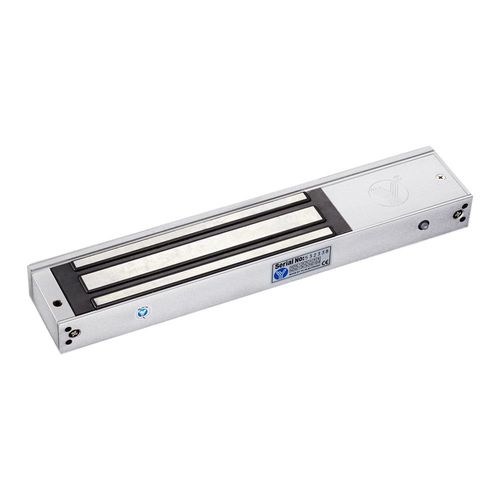

Electromagnetic Lock PBM-350(LED) (350kg)
Specifications
SKU
U-2529175
Product code
PSMGYM350
Supplier product description
- PBM-350(LED) Single door electric lock is for glass door, wooden door, fireproof door, sliding door and metal door
- Inbuilt dry contacts lock status signal output ( NO,NC,COM) and LED indicator to indicate the lock status
| Lock Size | 285Lx55Wx27.5H(mm) |
| Armature plate | 190Lx45Wx11H(mm) |
| Holding Force | 350kg(800Lbs) |
| Voltage | 12 or 24VDC |
| Current Draw | 12V/480mA or 24V/240mA |
| Signal Output | Dry Contact,Max Rating of Contact Current 3A |
| LED | Red indicates the door is unlock,Green indicates the door is lock |
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10～+55℃(14-131F) |
| Suitable Humidity | 0~95%(non-condensing) |
| Finishes for Shell | Anodized aluminum |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 2.7kg |
Supplier parameters
Product code
PSMGYM350
Category
Electromagmeti
Supplier's product code
PSMGYM350
Product ID
U-2529175
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
