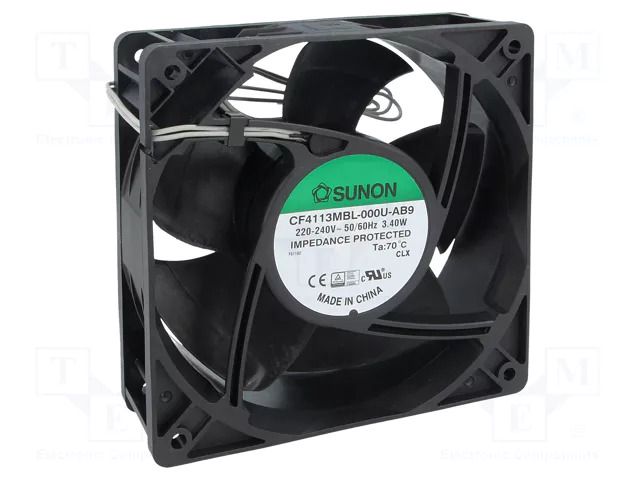

Fan: EC; axial; 230VAC; 120x120x38mm; 153.08m3/h; 40.2dBA; ball SUNON
Product Code: CF4113MBL-AB9
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Fan: EC; axial; 230VAC; 120x120x38mm; 153.08m3/h; 40.2dBA; ball
Useful information
Supplier parameters
Product code
CF4113MBL-AB9
Brand
SUNON
Supplier's product code
CF4113MBL-AB9
Product ID
U-145395
Cable length
0.33m
Current and power consumption tolerance
±20%
Current rating
64mA
Enclosure material
thermoplastic
Fan dimensions
120x120x38mm
Fan efficiency
153.08m<sup>3</sup>/h
Fan motor
brushless EC
Flammability rating
UL94V-0
Frequency
50...60Hz
Impeller material
thermoplastic
IP rating
IP55
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Manufacturer series
ECO
Min. insulation resistance
10MΩ
Noise level
40.2dBA
Operating temperature
-25...70°C
Operating voltage
90...265V
Power consumption
3.4W
Rotational rate/speed
3000rpm
Static pressure
7.87mm H<sub>2</sub>O
Supply voltage
230V AC
Type of fan
EC
Wire size
24AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
