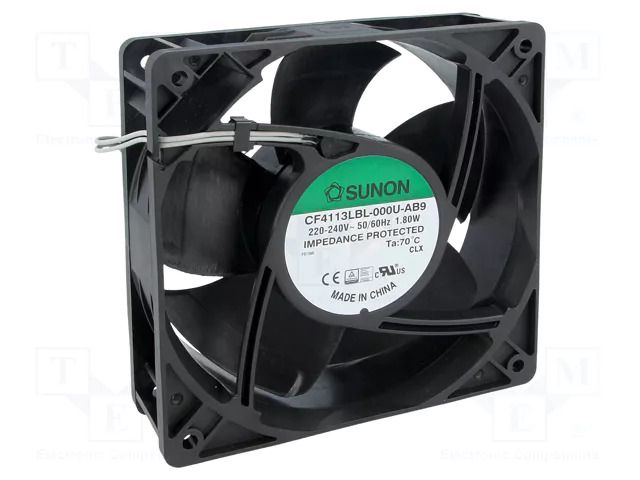

Fan: EC; axial; 230VAC; 120x120x38mm; 109.24m3/h; 31.4dBA; ball SUNON
Product Code: CF4113LBL-AB9
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: EC; axial; 230VAC; 120x120x38mm; 109.24m3/h; 31.4dBA; ball SUNON
Useful information
Specifications
Supplier product description
Fan: EC; axial; 230VAC; 120x120x38mm; 109.24m3/h; 31.4dBA; ball
Useful information
Supplier parameters
Product code
CF4113LBL-AB9
Brand
SUNON
Supplier's product code
CF4113LBL-AB9
Product ID
U-145393
Cable length
0.31m
Current and power consumption tolerance
±20%
Current rating
37mA
Enclosure material
thermoplastic
Fan dimensions
120x120x38mm
Fan efficiency
109.24m<sup>3</sup>/h
Fan motor
brushless EC
Flammability rating
UL94V-0
Frequency
50...60Hz
Impeller material
thermoplastic
IP rating
IP55
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Manufacturer series
ECO
Min. insulation resistance
10MΩ
Noise level
31.4dBA
Operating temperature
-30...50°C
Operating voltage
90...265V
Power consumption
1.8W
Rotational rate/speed
2000 (±10%)rpm
Static pressure
4.32mm H<sub>2</sub>O
Supply voltage
230V AC
Type of fan
EC
Wire size
24AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
Product not available.
