Fan: DC; axial; 24VDC; 80x80x25mm; 62.86m3/h; 30dBA; ball; 2900rpm SUNON
Product Code: EF80252B2-A99-A

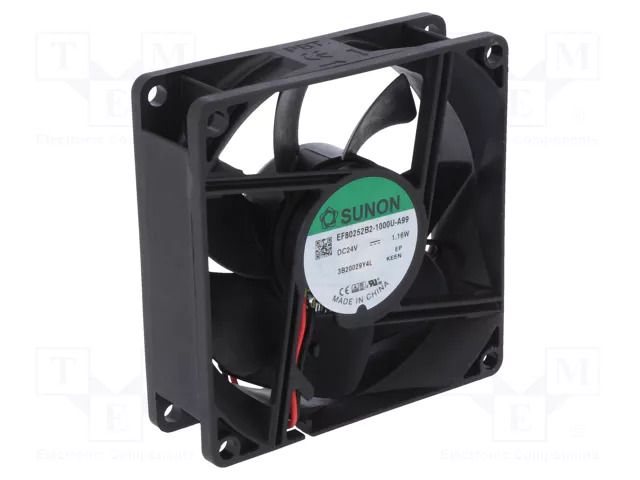

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 80x80x25mm; 62.86m3/h; 30dBA; ball; 2900rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 80x80x25mm; 62.86m3/h; 30dBA; ball; 2900rpm
Useful information
Supplier parameters
Product code
EF80252B2-A99-A
Brand
SUNON
Supplier's product code
EF80252B2-A99-A
Product ID
U-1871866
Additional functions
Autorestart
Cable length
0.315m
Current and power consumption tolerance
±15%
Current rating
48mA
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
62.86m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
30dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V DC
Power consumption
1.16W
Rotational rate/speed
2900rpm
Supply voltage
24V DC
Type of fan
DC
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
