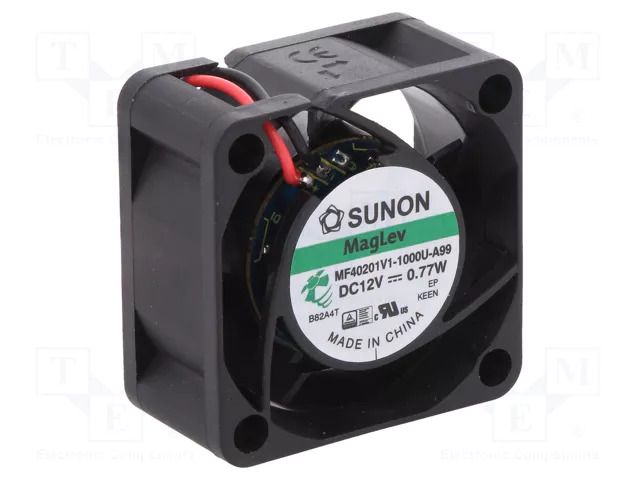

Fan: DC; axial; 12VDC; 40x40x20mm; 15.04m3/h; 25.5dBA; Vapo; 7000rpm SUNON
Product Code: MF40201V1-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 40x40x20mm; 15.04m3/h; 25.5dBA; Vapo; 7000rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 40x40x20mm; 15.04m3/h; 25.5dBA; Vapo; 7000rpm
Useful information
Supplier parameters
Supplier's product code
MF40201V1-A99-A
Product ID
U-256019
Product code
MF40201V1-A99-A
Additional functions
Autorestart
Cable length
0.305m
Current rating
58mA
Enclosure material
thermoplastic
Fan dimensions
40x40x20mm
Fan efficiency
15.04m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
25.5dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
0.7W
Rotational rate/speed
7000rpm
Static pressure
5.59mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
