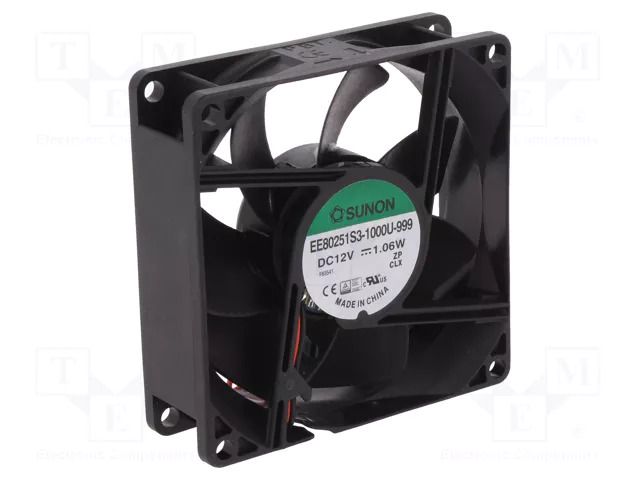

Fan: DC; axial; 12VDC; 80x80x25mm; 55.77m3/h; 28dBA; slide; 24AWG SUNON
Product Code: EE80251S3-999-A
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Fan: DC; axial; 12VDC; 80x80x25mm; 55.77m3/h; 28dBA; slide; 24AWG
Useful information
Supplier parameters
Product code
EE80251S3-999-A
#Promotion
sunon_202110
Cable length
0.315m
Current rating
88mA
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
55.77m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Kind of Bearing
slide
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
28dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
1.06W
Rotational rate/speed
2600 (±10%)rpm
Static pressure
2.79mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Unit price
No
Wire size
24AWG
Brand
SUNON
Supplier's product code
EE80251S3-999-A
Product ID
U-176645
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
