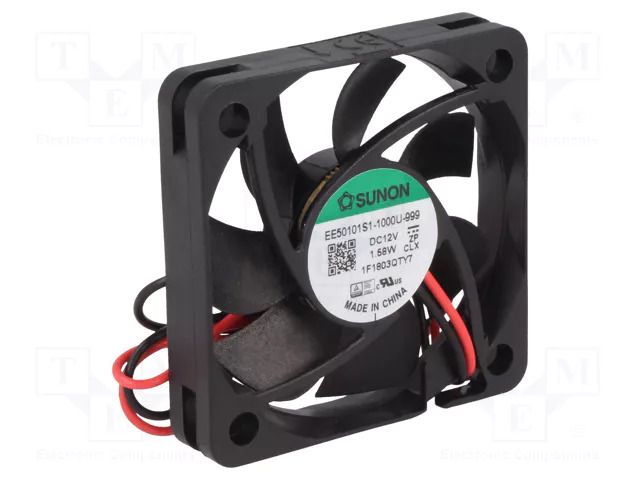

Fan: DC; axial; 12VDC; 50x50x10mm; 21.97m3/h; 30.7dBA; slide; 26AWG SUNON
Product Code: EE50101S1-999-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 50x50x10mm; 21.97m3/h; 30.7dBA; slide; 26AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 50x50x10mm; 21.97m3/h; 30.7dBA; slide; 26AWG
Useful information
Supplier parameters
Product code
EE50101S1-999-A
Brand
SUNON
Supplier's product code
EE50101S1-999-A
Product ID
U-176625
Cable length
0.295m
Current and power consumption tolerance
±15%
Current rating
90mA
Enclosure material
thermoplastic
Fan dimensions
50x50x10mm
Fan efficiency
21.97m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
slide
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
30.7dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
1.58W
Rotational rate/speed
5700rpm
Static pressure
3.56mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
