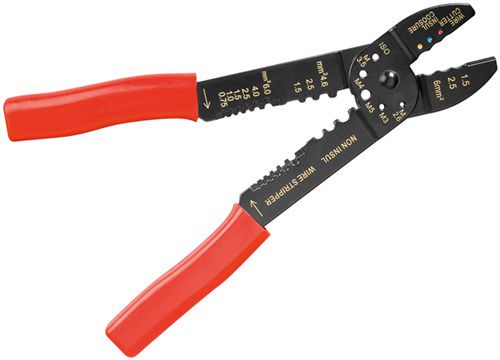

Crimping Tool for Insulated and Uninsulated Cable Lugs, black-red - multifunctional pliers for crimping, cutting and stripping cables and shortening screws
Product Code: 77289
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Fixpoint Crimping Tool for Insulated and Uninsulated Cable Lugs, black-red, Flap-over Blister - multifunctional pliers for crimping, cutting and stripping cables and shor
Crimping pliers for insulated cable lugs, crimp connectors, butt splice connectors with heat shrink tubing, wire end ferrules and blade connectors with a cross-section of 1.25 mm² (red), 2.0 mm² (blue) and 5.5 mm² (yellow)
The colour coding helps to select the correct gripper jaws and provides high-precision results when crimping the different diameters
Suitable for crimping uninsulated, open connectors with cross-sections of 1.25 mm², 2.0 mm² and 3.5-5.5 mm², e.g. MC4 connectors on solar panel cables
Thanks to the clever system of integrated threaded holes, the crimper precisely cuts screws and threaded pins made of copper or brass (M 2.6, M 3, M 3.5, M 4, M 5)
The robust metal blade ensures that the wire cutter cleanly cuts through wires and cables up to 6.0 mm² thick
Precisely fitted openings for cable cross-sections of 0.75 mm², 0.9 mm², 1.25 mm², 2.0 mm², 3.5 mm² and 5.5 mm² prevent damage to individual stranded wires during stripping
The wire stripper is suitable for all standard insulation materials as well as solid wires of sizes AWG 10-20
Crimping pliers for insulated cable lugs, crimp connectors, butt splice connectors with heat shrink tubing, wire end ferrules and blade connectors with a cross-section of 1.25 mm² (red), 2.0 mm² (blue) and 5.5 mm² (yellow)
The colour coding helps to select the correct gripper jaws and provides high-precision results when crimping the different diameters
Suitable for crimping uninsulated, open connectors with cross-sections of 1.25 mm², 2.0 mm² and 3.5-5.5 mm², e.g. MC4 connectors on solar panel cables
Thanks to the clever system of integrated threaded holes, the crimper precisely cuts screws and threaded pins made of copper or brass (M 2.6, M 3, M 3.5, M 4, M 5)
The robust metal blade ensures that the wire cutter cleanly cuts through wires and cables up to 6.0 mm² thick
Precisely fitted openings for cable cross-sections of 0.75 mm², 0.9 mm², 1.25 mm², 2.0 mm², 3.5 mm² and 5.5 mm² prevent damage to individual stranded wires during stripping
The wire stripper is suitable for all standard insulation materials as well as solid wires of sizes AWG 10-20
Supplier parameters
Product code
77289
Brand
Fixpoint
Supplier's product code
77289
Product ID
U-53103
