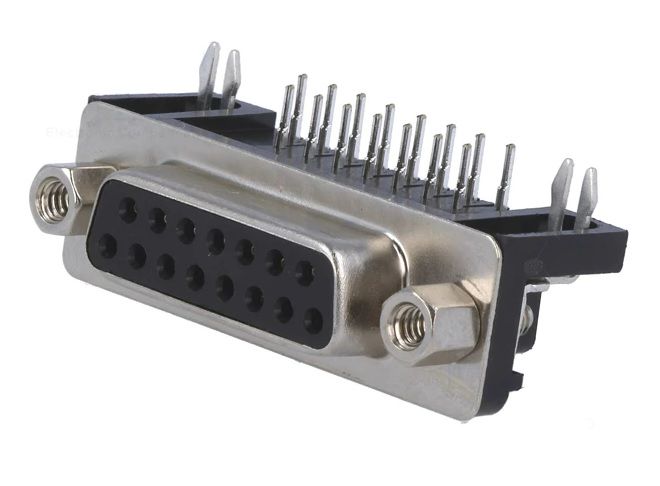

Connector:D-Sub;socket;female;PIN:15;angled,7,2 mm standard
Product Code: DB/H-15-F
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Useful information
Specifications
SKU
28047
Weight
0.005 kg.
Brand
Connector type
.
DB
Number of contacts
15
Purpose
Nest
Product code
DB/H-15-F
Other products of the same brand
Other products in this category
Supplier product description
D-Sub; PIN: 15; socket; female; angled 90°; THT; UNC 4-40; 5A; 15mΩ
Useful information
Supplier parameters
A dimension
25mm
B dimension
33mm
C dimension
39mm
Connector
socket
Connector variant
7,2mm standard
Current rating
5A
Electrical mounting
THT
Kind of connector
female
Locking system
screws
Manufacturer
CONNFLY
Max. contact resistance
:15mΩ
Number of pins
15
Operating temperature
-55...105°C
Spatial orientation
angled 90°
Thread
UNC 4-40
Type of connector
D-Sub
