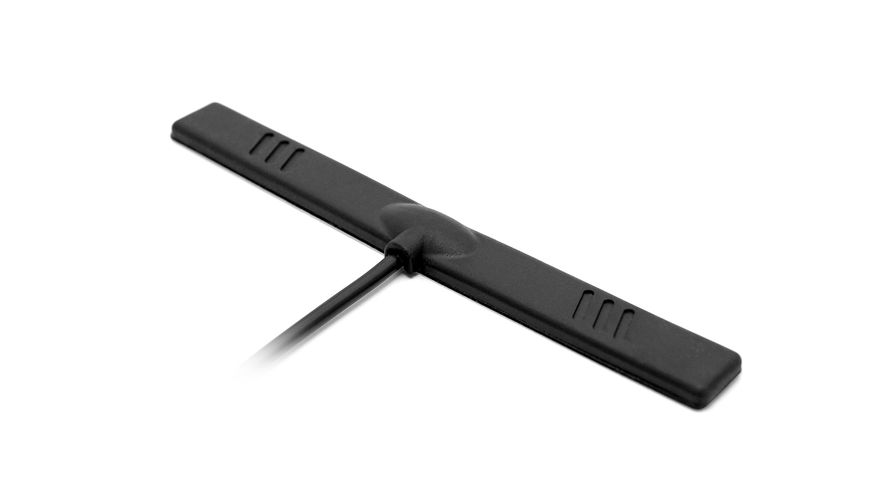

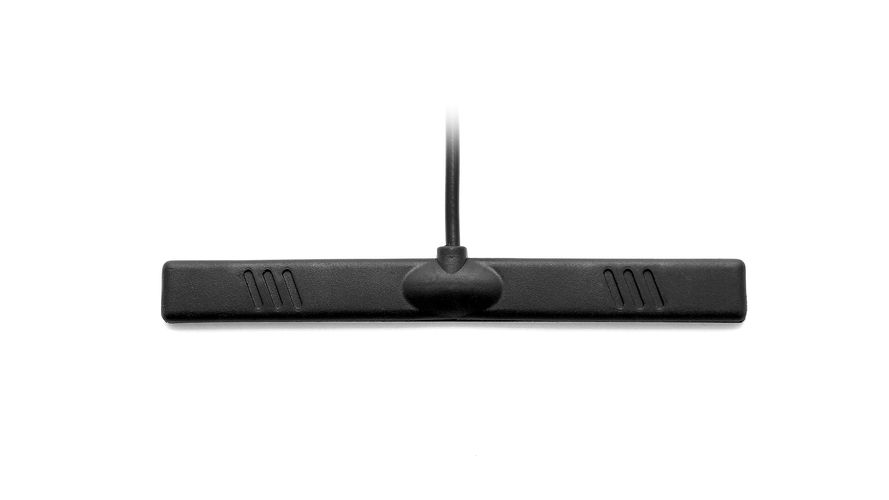

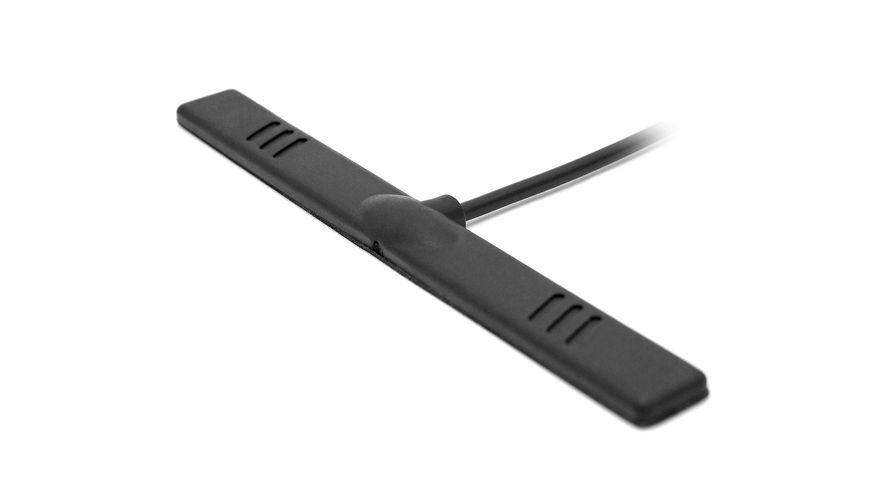

Antenna LTE/GSM/3G/4G/LTE/WLAN/BLUETOOTH, glass mount, 2.14dBi, 2.5m RG174U, FME female
Product Code: 2J520-250RG174-C04N
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Type: LTE Antenna
Frequencies: AMPS (824-894 MHz), GSM (900 MHz), DCS (1800 MHz), PCS (1900 MHz), 3G (UMTS 2.1 GHz), WIFI / BLUETOOTH (2.4 GHz), 4G/LTE (699-960/1710-2690 MHz)
Mounting: Glass mount
Impedance: 50 Ohms
Polarization: Linear
Gain: 2.14 dBi
VSWR: Full 4G/LTE <5:1 / Europe: <2:1
Power handling: 25W
Operating temperature: -40°C to +85°C
Connector type: SMA male
Cable: RG174U
Cable length: 250cm
Material: PVC
Dimmensions: 6.7x117.4x12.5mm
Weight: 13g (with 250cm cable and FME female connector)
Frequencies: AMPS (824-894 MHz), GSM (900 MHz), DCS (1800 MHz), PCS (1900 MHz), 3G (UMTS 2.1 GHz), WIFI / BLUETOOTH (2.4 GHz), 4G/LTE (699-960/1710-2690 MHz)
Mounting: Glass mount
Impedance: 50 Ohms
Polarization: Linear
Gain: 2.14 dBi
VSWR: Full 4G/LTE <5:1 / Europe: <2:1
Power handling: 25W
Operating temperature: -40°C to +85°C
Connector type: SMA male
Cable: RG174U
Cable length: 250cm
Material: PVC
Dimmensions: 6.7x117.4x12.5mm
Weight: 13g (with 250cm cable and FME female connector)
