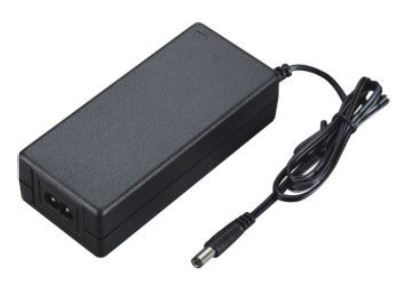

60W single output power supply 12V 5A desktop
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Products purchased together
Product description
| Model： | YS50 |
| Power: | 60W max. |
| Input： | 100-240VAC 50/60Hz |
| Output Voltage: | 12V |
| Output Current: | 5A |
| Input current: | 1.5A max. |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 0.25mA Max. at 264VAC input |
| Energy Efficiency Level VI : | CoC 5 / DoE 6 / CEC VI |
| No Load Power Consumption ： | ＜0.15W |
| Protections： | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP)： | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity： | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: | EU,US,UK,AU etc. type according to customer's choice |
| Certificates and approvals: | UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH |
| EMI EMISSION: | Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25℃ ambient |
| Life: | 3-5 years alternative |
| Dimension: | 115.5*52*32.5mm |
| Weight: | 260g |
| Packing: | 50PCS/CTN,34*31*37cm |
Useful information
Specifications
Experimental product description generated by artificial intelligence
60W Single Output Power Supply 12V 5A Desktop
YINGJIAO ELECTRICAL presents this reliable and efficient 60W single output power supply, perfect for various desktop applications.
Key Features
- Power Output: 60W
- Voltage: 12V
- Current: 5A
- Type: Desktop power supply
- Brand: YINGJIAO ELECTRICAL
Applications
This power supply is ideal for powering various devices and equipment, including:
- Routers
- Modems
- Set-top boxes
- Other low-power devices
Why Choose This Product?
This 60W power adapter offers a reliable and stable power source for your desktop devices. Its compact design makes it perfect for use in tight spaces. The YINGJIAO ELECTRICAL brand ensures quality and durability.
Specifications
| Parameter | Value |
|---|---|
| Output Power | 60W |
| Output Voltage | 12V |
| Output Current | 5A |
Note: Specific details such as color may vary.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
