Bigger Print Size, yet Space-saving

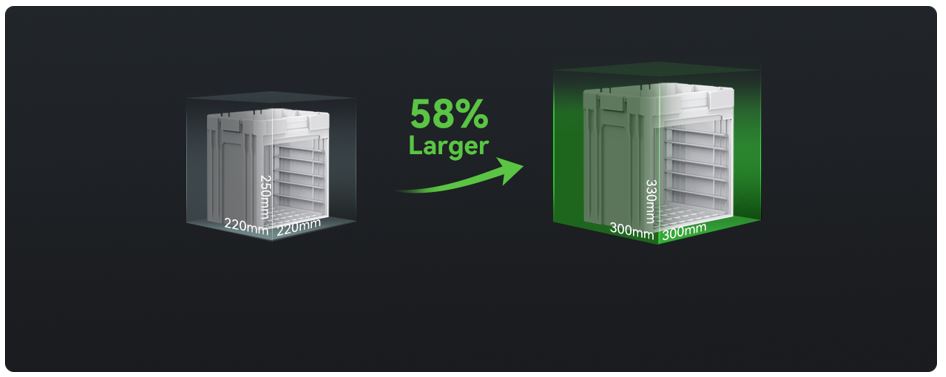

With a substantial 58% increase in build volume compared to its predecessor, the Ender-3 V3 Plus provides an expansive 300 x 300 x 330mm printing area. This enhancement caters to users seeking to produce multiple small parts in a single batch or those aiming to create larger models with ease.

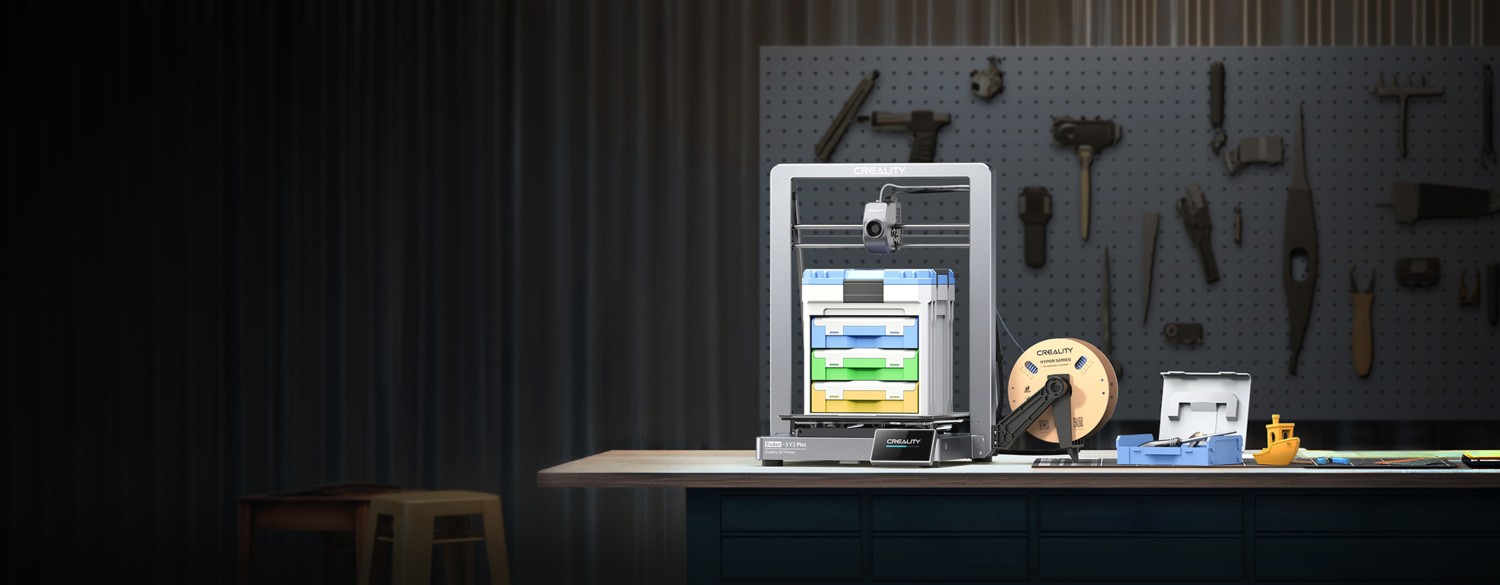

Ender-3 V3 Plus is restructured from scratch. It occupies significantly less space than 3D printers of a similar build volume. An easy fit on your desk or workbench.

Game-changing CoreXZ Motion System

The X and Z-axis of Ender-3 V3 Plus are rigged together,allowing two high-torque motors to work in unisonfor quick response in the blink of an eye.

XZ Belt Tensioning,Fully Automated

The XZ timing belts of Ender-3 V3 Plus are tensioned automatically. Belt slips or jams now become a thing of the past.

Accurate Z-axis, Less Wobbling

Thanks to the precise linear rods and timing belts,the Z-axis can position itself more accurately than ever.It means minimal Z-banding in your 3D prints.

Two Powerful Motors on Y-axis

The print bed is moved back and forth swiftly by two 500mN.m motors along two beefy linear rods. No sweat to carry large and hefty 3D prints.

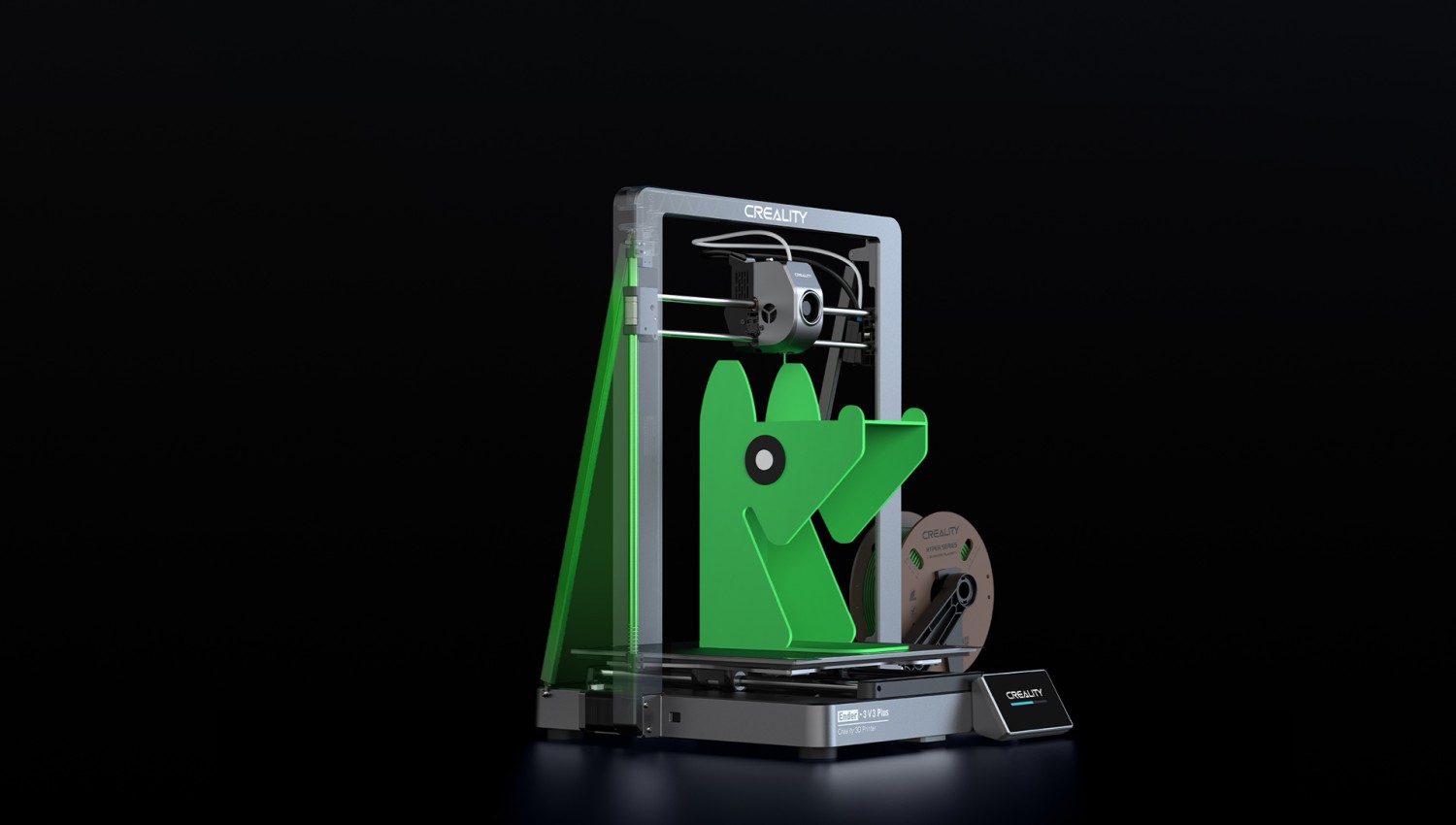

Two Support Rods Stabilizing the Z-axis

Two support rods are added to connect the base and the top of the gantry and form a rigid triangle that reduces Z-axis shaking.The print quality is ensured throughout the height of the print volume.

A New Benchmark of Printing Speed

With CoreXZ and Y-axis dual motors, it can print 12 times faster (max speed: 600mm/s) than a regular 3D printer.And the print quality is just amazing. Prototyping and small-batch production can be done with a fraction of the previous time and cost.

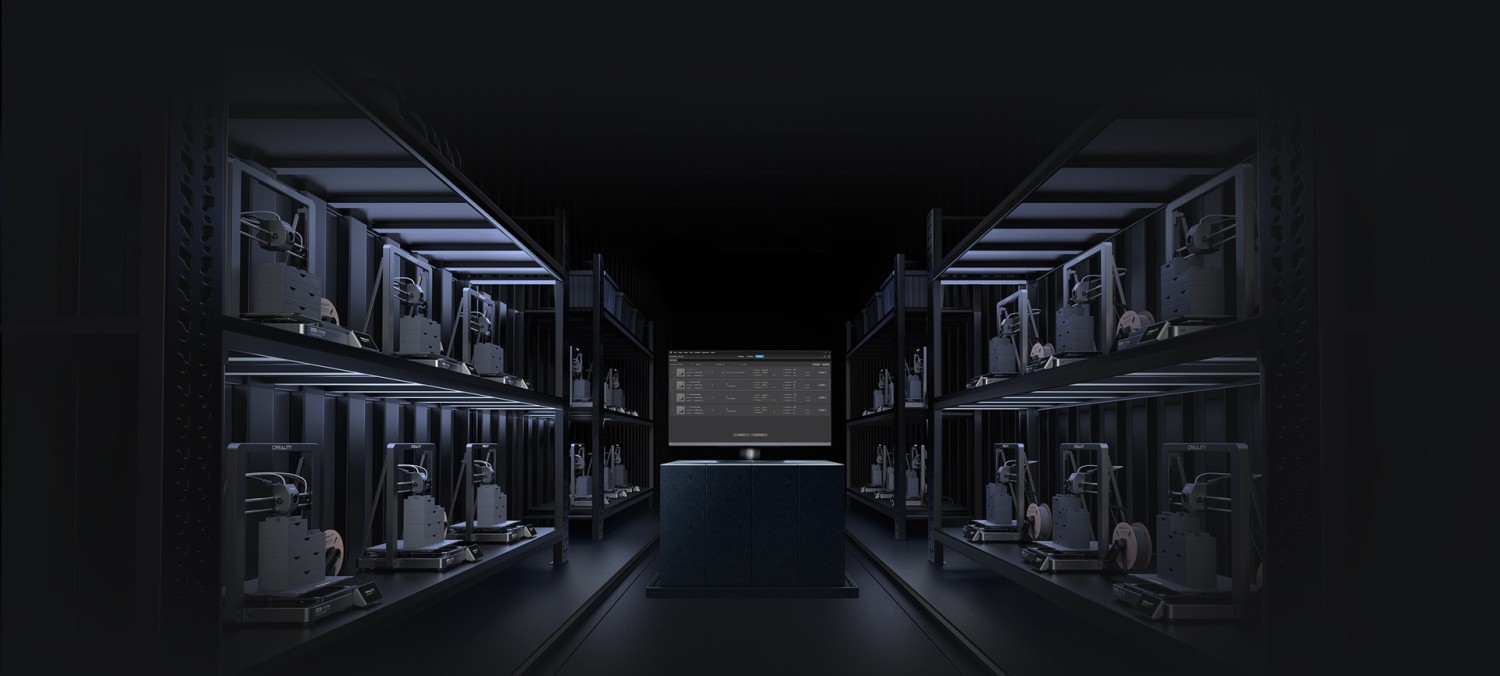

Optimized for Print Farm Scenario

Ender-3 V3 Plus features a WiFi module to access the internet or data-secure LAN.With the help of Creality Print or Creality Cloud APP, You can select dozens of it to start printing at the same time.

Stability & Unique Aesthetics

• Metal Frame with Die-cast Parts: The gantry and base are each a single aluminum alloy piece made by integrated die-casting.With fewer bolts and seams, Ender-3 V3 Plus is incredibly solid and stable.
• Tough Aerospace Aluminum Alloy: Both the gantry and base use ADC12 aluminum alloy, boasting great mechanical strength.
• Groovy Curves Around Every Corner: The edges and corners are softened with minor curves, so that Ender-3 V3 Plus looks more integral and elegant.

Better Quality with Two Part Cooling Fans

Two fans, front and back on the printhead, cool the freshly printed section rapidly and evenly. Gone with the wind is any drooping, warping, or stringing. Moreover, dynamic balancing is adopted for printhead fans for reduced vibrations.

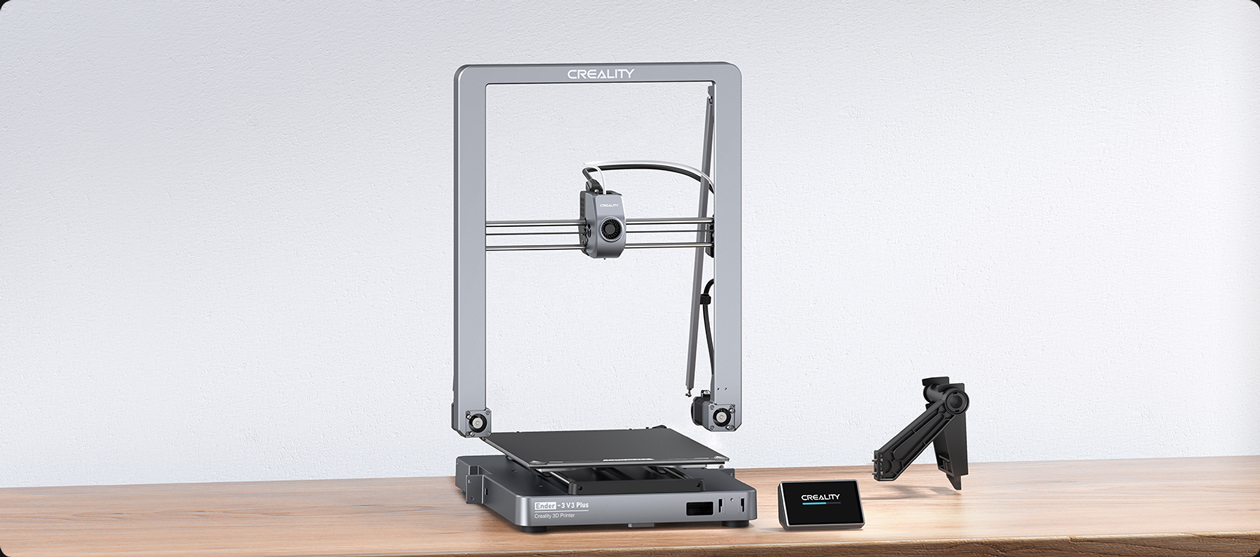

Quick Assembly Like a Breeze

Ender-3 V3 Plus comes to you in highly pre-assembled modules. Even a first-time 3D printer user can put it together quickly with ease.

Creality OS & Superb Software

Open-source Creality OSBased on Klipper: Creality OS enables many advanced functions such as linear advance and input shaping.It allows fine-tuning in expert mode or with root access.FLUIDD WebUI is also supported for your convenience.

Technical data

Nozzle Thread / Fitment	Creality Unicorn
Compatible Filament Diameter	1.75 mm
Max Nozzle Temperature	300 ºC
Open Filament System	Yes
Extruder Type	Dual-gear direct drive
Recommended Max Printing Speed	600 mm/s (depends on material)
Build Volume	300 mm x 300 mm x 330 mm
Max Build Plate Temp	100 ºC
Build Plate Surface	PEI
Build Plate Material	Flexible Steel Plate
Build Plate Fitment	magnetic
Build Plate Leveling System	automatic
Build Chamber During Process	Open
Number of Extruders	1
Overall Dimensions	410 mm x 445 mm x 577 mm
Net Weight	11.5 kg
Max Power Consumption	350 W
Voltage	AC: 200 V240 V (50-60 Hz)
Hepa Filter	No
Filament Runout Sensor	Yes
Power Loss Fail Safe	Yes
Touch Screen	Yes
USB Port	Yes
WLAN	Yes
Cloud Control	Yes
Layer Height	0.1 - 0.35 mm
Resolution	0.2 mm
Shipping Box	623 mm x 503 mm x 245 mm
Gross Weight	14.6 kg
