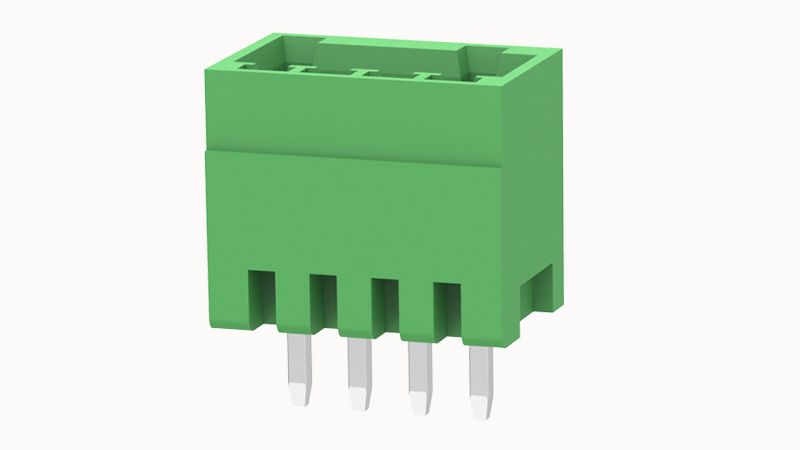

15EDGVC-2.5-04P-14-00A(H)
Product Code: 15EDGVC-2.5-04P
New
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Weight
0.001 kg.
Brand
Processing notes
| Process | Wave soldering/manual soldering |
Electrical parameters UL
| Rated voltage (B) | 150V |
| Rated voltage (C) | 150V |
| Rated voltage (D) | 150V |
| Rated current (B) | 4A |
| Rated current (D) | 4A |
| Rated current (C) | 4A |
Electrical parameters IEC
| Rated voltage | 250V |
| Rated current | 5A |
| Rated voltage(II/2) | 250V |
| Rated surge voltage(II/2) | 2.5KV |
Item properties
| Connection direction | 90° |
| Type of installation | PCB welding |
| Pin arrangement | Single row in a straight line |
| Pitch | 2.5mm |
| Number of potentials | 4 |
| Pluggable or not | Yes |
| Number of rows | 2 |
Material data
| Environmental items | Compliant with REACH/RoHS |
| Contact material | Copper alloy |
| Contact zone metal surface | tin-plated |
| Insulation Materials | PA66 |
| Insulating material group | â… |
| Flammability rating | UL94V-0 |
Mechanical tests
| Test Specification | IEC61984/ UL1059 |
Environmental data
| Ambient temperature (operation) | -40℃~105℃(depending on derating curve) |
Useful information
Specifications
SKU
383964
Weight
0.001 kg.
Brand
Product code
15EDGVC-2.5-04P
Number of contacts
4
Step, mm
2.5
