Continuous servomotor with wheel 1.5kg/cm (6V)
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

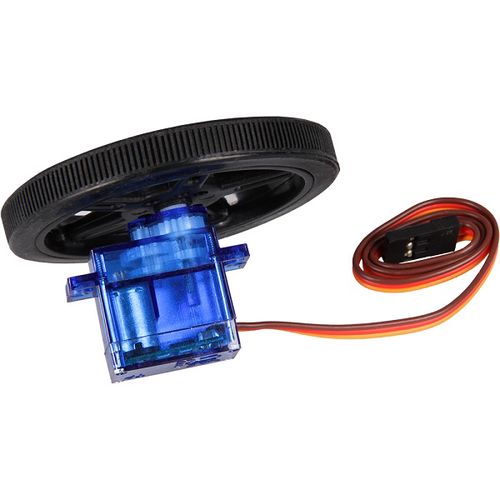

Servo motor FS90R
This continuous servo motor FS90R with an 6 cm large wheel is due to its compact size perfect for control and regulation of small loads and thus a good choice for engineering. Operated with 5 V, this servo motor has a peak torque of up to 1,5 kg/cm.
Please note: This is a continuous servo motor. Unlike a conventional servo motor, this one uses a PWM signal to set the speed and direction of rotation instead of the position.
Specifications
| Peak torque | 1,5 kg/cm |
| Rotations (without load) | 110-130 rpm |
| Voltage supply | 4 - 6V DC |
| Operating voltage | 4.8 - 6 V |
| Operating current | 100 - 120 mA |
| Idle current | 5 - 6 mA |
| Stall current | 550 - 650 mA |
| Gear spline | Plastic (Nylon and POM) |
| Horn gear spline | 20T (4.8mm) |
| Horn type | Plastic |
| Connection wire length | 200 mm |
| Command signal | Pulse width modulation |
| Amplifier type | Analog comparator |
| Pulse width range | 700 - 2300 µs |
| Dead band width | 90 µs |
| Default stop position | 1500 (+/-45) µs |
| Rotating direction CW | 700-1500 µs |
| Rotating direction CCW | 1500 - 2300 µs |
| Dimensions of Wheel | Ø60mm x 8mm, 10g |
| Dimensions | 32,6mm x 32mm x 12,5mm |
| Weight | 9g |

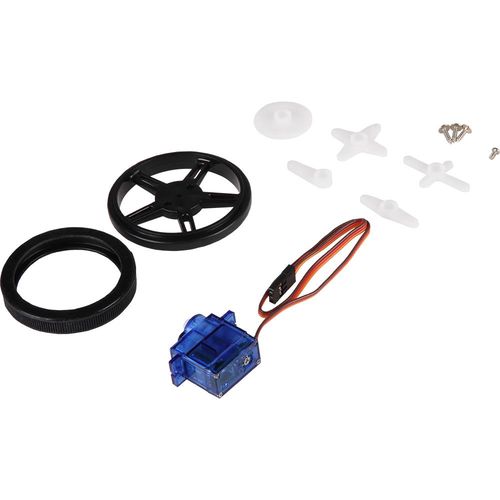

| Set included | Servo variklis, ratukas, tvirtinimo priedai |
Useful information
Specifications
Experimental product description generated by artificial intelligence
JOY-IT Continuous Servomotor with Wheel 1.5kg/cm (6V)
This continuous rotation servo motor, also known as a continuous rotation servo or RC servo motor, is a small and lightweight device ideal for controlling or regulating small loads in various applications. It's part of the JOY-IT Servo Motors product category.
Key Features and Functions
- Compact size: Perfect for use in small spaces and projects.
- Continuous rotation: Unlike standard servo motors, this model allows for continuous rotation in either direction, controlled by pulse width modulation (PWM).
- High torque: Provides a peak torque of up to 1.5 kg/cm (at 6V), making it suitable for a range of applications.
- Easy to use: Operates with a simple PWM signal, making it compatible with various microcontrollers such as Arduino and Raspberry Pi.
- Includes wheel: Comes with a 60mm diameter wheel for easy integration into robotic or mobile projects.
Applications
This versatile motor is suitable for a wide range of applications, including:
- Robotics
- Model making
- Automation projects
- Educational projects
- DIY projects
Why Choose This Product?
The JOY-IT Continuous Servomotor with Wheel offers a compelling combination of features and benefits:
- High performance: Delivers strong torque for its size.
- Ease of use: Simple to integrate into your projects.
- Cost-effective: Provides excellent value for its capabilities.
- Reliable: Built to JOY-IT's quality standards.
- Complete solution: Includes the motor and wheel, ready to use.
| Specification | Value |
|---|---|
| Peak Torque | 1.5 kg/cm (at 6V) |
| Operating Voltage | 4-6V DC |
| No-load Speed | 110-130 RPM |
| Wheel Diameter | 60mm |
This continuous servo motor is a reliable and versatile choice for your engineering and robotics projects. Its compact size, high torque, and ease of use make it an excellent option for a wide range of applications.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
Other products in this category
Supplier product description
Operated with 5 V, this servo motor has a peak torque of up to 1,5 kg/cm.
Technical data:
Peak torque: 1,5 kg/cm
Rotations ( without load ): 110-130 rpm
Voltage supply: 4-6V DC
Operating voltage: 4.8 - 6 V
Operating current: 100 - 120 mA
Idle current: 5-6 mA
Stall current: 550-650 mA
Gear spline: Plastic ( Nylon and POM )
Horn gear spline: 20T ( 4.8mm )
Horn type: Plastic
Connection wire length: 200 mm
Command signal: Pulse width modulation
Amplifier type: Analog comparator
Pulse width range: 700-2300 µsec
Dead band width: 90 µsec
Default stop position: 1500 ( +/-45 ) µsec
Rotating direction CW: when 700-1500 µsec
Rotating direction CCW: when 1500 - 2300 µsec
